AeroRevo Integrated Handlebar

At Light Bicycle, we believe true engineering is a silent dialogue between rider and component. Today, that conversation evolves. We are proud to unveil the AeroRevo—a milestone in our relentless pursuit of performance and the ultimate manifestation of our innovative spirit. As the winner of the prestigious 2026 Design & Innovation Award, the AeroRevo is our definitive answer to the modern racing aesthetic: narrow, fully internal, and remarkably compliant.

Featuring a NACA aerodynamic profile and a monolithic carbon structure, every curve of this cockpit is sculpted for a featherweight touch—starting at a mere 250g—without compromising an ounce of durability. True to Light Bicycle’s customization DNA, the AeroRevo offers 18 size configurations and bespoke options to suit your unique ride.

Global Shop

US Shop

CA Shop

Ships worldwide. See what's on sale>>

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the US Shop. Check this link to see what items we stock, or send us an email to discuss.

Our Global Shop can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelsets. We will get back to you via email to discuss in 24hrs.

Our apologies, we do not stock this item at the CA Shop. Check this link to see what items we stock, or send us an email to discuss.

The wheelsets are still in transit to this shop. We’ll update this page when they’re available. Learn more about our European shop.

You can order this product from our Global or North American shops.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

DEFAULT SETTINGS

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

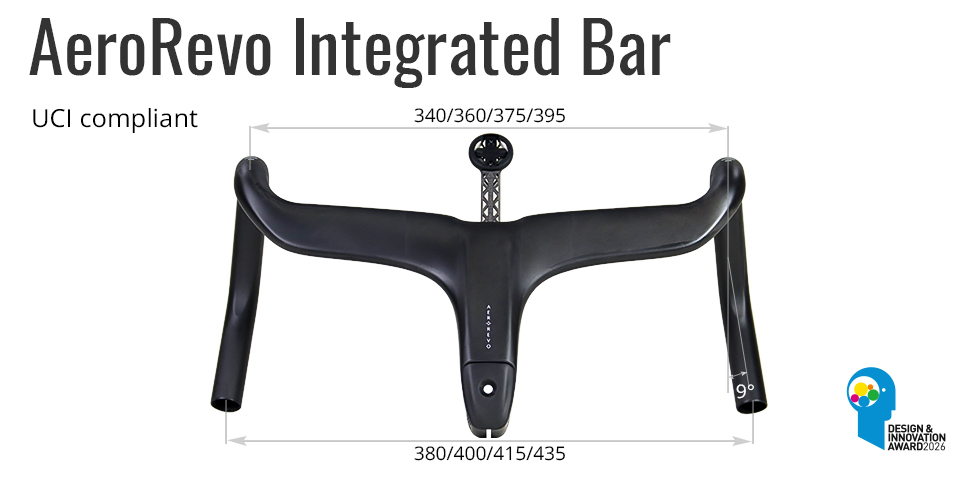

Bar Width This is a required option.

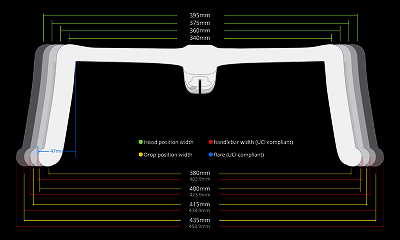

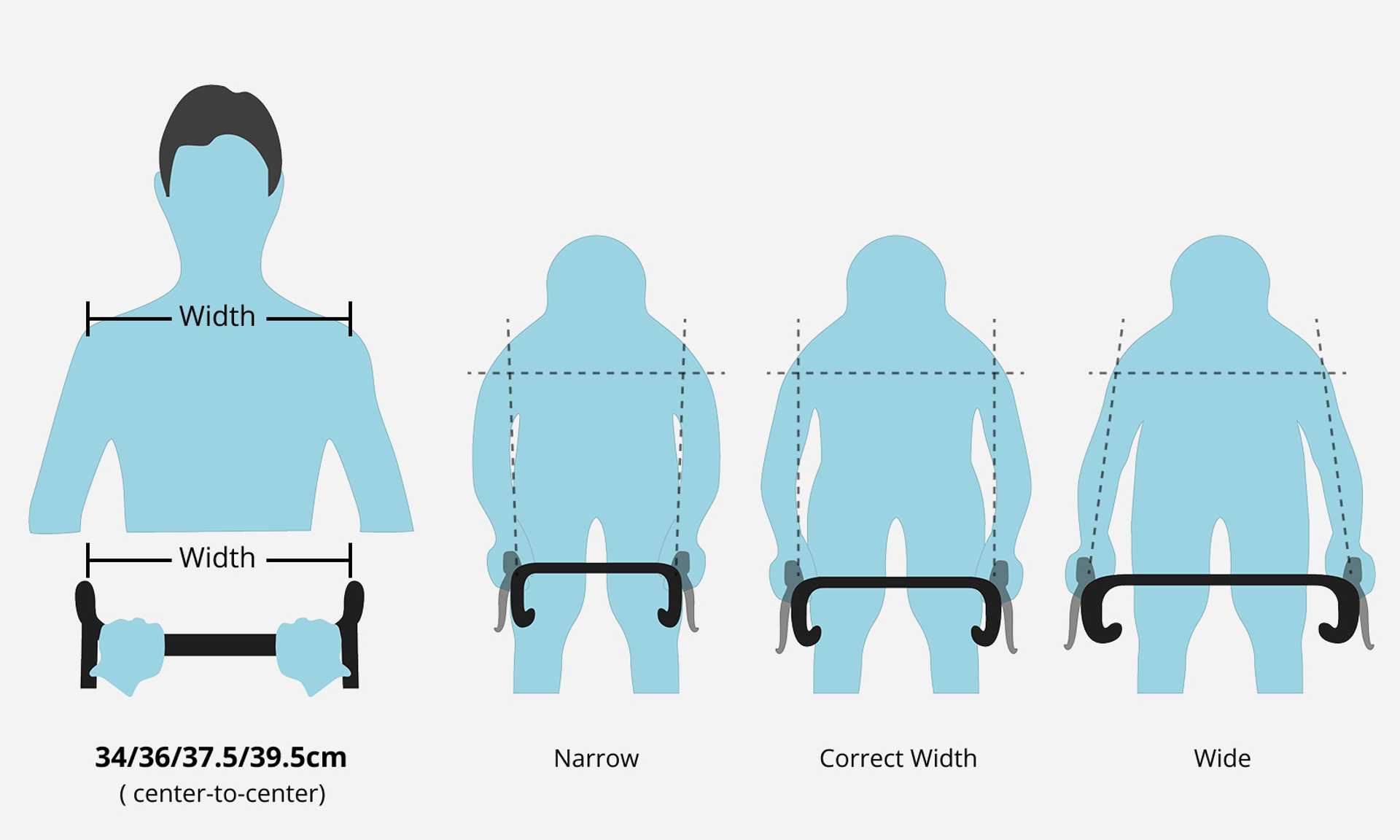

Handlebar width is a critical factor in bike performance. The AeroRevo is meticulously engineered for aerodynamics, featuring widths ranging from 340mm to 395mm at the hoods and 380mm to 435mm at the drops.

In accordance with the UCI regulations effective January 1, 2026, which mandate a minimum drop width of 400mm (outside-to-outside) and strict flare limits (not exceeding 50mm from inside to outside), the AeroRevo is fully UCI-compliant. Race with confidence, knowing your setup meets the latest professional standards without compromising on speed.

340mm/380mm

360mm/400mm

375mm/415mm

395mm/435mm

Stem Length This is a required option.

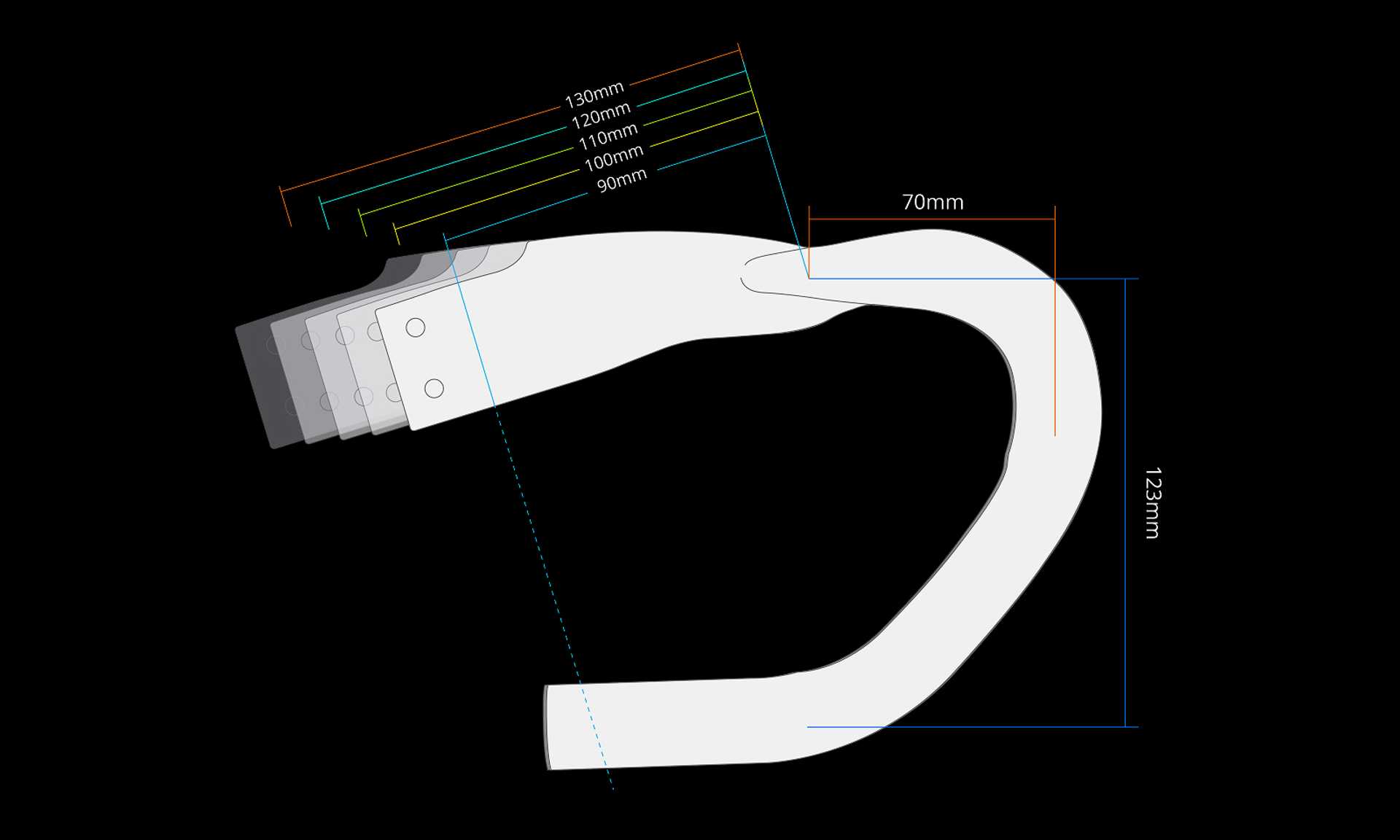

We produce the AeroRevo handlebars with different types of carbon fiber weaves: UD and marble. As the name implies, Uni-Directional (UD): all fibers are oriented in the same direction. It delivers a standard, unobtrusive look and provides the fabric with high-strength benefits. This is also the best advantage of UD carbon fibers. Marble weave is an aesthetic treatment that has a decorative effect. It is the perfect choice for riders who want handlebars with a touch of the unexpected, but with a more abstract, organic look.

90mm

100mm

110mm

120mm

130mm

Finish This is a required option.

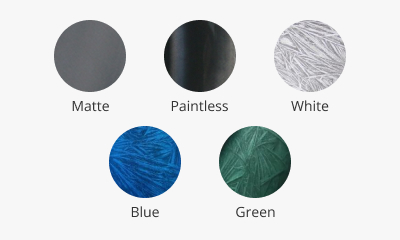

For AeroRevo, we offer many finish options for you to choose from.

Matte: A stealthy, non-reflective finish. Our most popular choice for carbon rims.

Glossy: Vibrant and high-shine; easy to maintain and clean.

Paintless: Produced directly from the mold with no additional coating, resulting in a durable, scratch-resistant, and flawless surface.

Glossy Crystal: By forming complex, multi-layered textures on the carbon rim, this finish achieves an aesthetic that feels both futuristic and organic. Available in blue, white, and green.

Custom: For all custom finishes, we will send a follow-up email to confirm the color details. Please check your email regularly. You may provide a Pantone color code in your message, or simply wait for our team to contact you to finalize the details."

Matte

Paintless/Raw Carbon USD +19

Crystal Painting Glossy: Blue USD +50

Crystal Painting Glossy: White USD +50

Crystal Painting Glossy: Green USD +50

Custom Paint Job USD +100

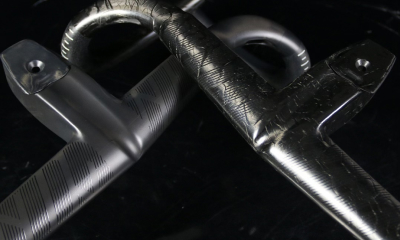

Weave This is a required option.

Marble USD +15

Warranty This is a required option.

Standard 3-Year Warranty: Your new AeroRevo handlebar is protected by a 3-year warranty against any manufacturing defects. If an issue arises due to our workmanship, we will replace your handlebar quickly and hassle-free. This is our quality promise to you.

"Peace of Mind" Upgrade Pack: For ultimate confidence, opt for our "Peace of Mind" upgrade for just US$129. This entitles you to one free replacement for any reason at all—no questions asked. It’s the perfect way to protect your investment and ride with total freedom.

Peace of Mind Pack USD +129

3 Years Standard

Bar Tape (fi"zi:k) This is a required option.

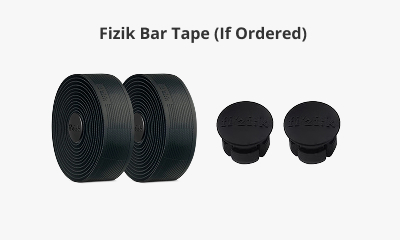

For AeroRevo, you can choose to buy with or without bar tape. If you need the bar tape, our default option is the Black Fizik Vento Solocush Tacky 2.7mm. For other custom colors, lengths, or models, please add a note at checkout or email us directly.

None

Black VENTO SOLOCUSH TACKY 2.7mm USD +36

Customized USD +36

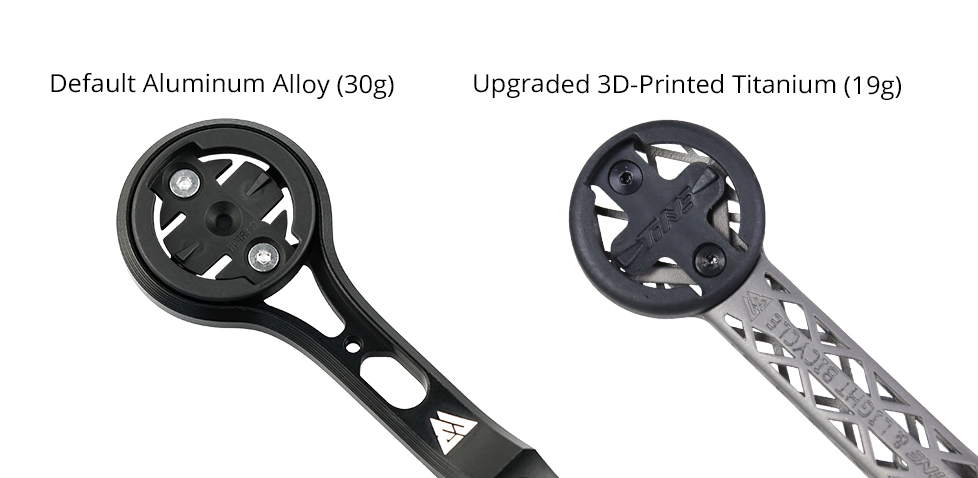

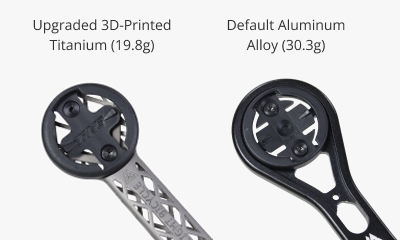

Proprietary Computer Mount This is a required option.

While the AeroRevo features a standard alloy mount, performance-oriented riders can upgrade to a 3D-printed titanium version for $159. This premium upgrade slashes weight from 30.3g to just 19.8g while offering superior vibration damping and lifelong corrosion resistance. Custom colors are available—contact our support team to personalize your cockpit.

Aluminum Alloy (31g)

Custom Color 3D Printed Titanium (19g) USD +179

3D-Printed Titanium (19g) USD +159

Bike Model This is a required option.

Universal

Specialized Tarmac SL8 USD +30

Specialized Tarmac SL7 USD +30

TREK Madone SLR Gen8 USD +30

Scott ADDICT RC USD +30

Cervelo R5 USD +30

Factor OSTRO VAM USD +30

Pinarello Dogma F12 USD +30

Other (Leave a note when checkout) USD +30

Piece Weight: 250.00g+/-15

Subtotal: USD 410+

- + PCS

ADD TO CART

At a Glance Geometry & Sizing In the Box

Configure Yours

At a Glance

Use: Lightweight Road Riding
Weight: 250g+
Dimensions: 123mm drop x 70mm reach, 9 degrees of flare at the drops, stem x -10 degrees
Finish: Matte/Glossy/Custom Paint
Cable Routing: Internal & External
Computer Mount: Alloy Aluminum or 3D-Printed Titanium

Full Specifications >>

WINNER OF DI.A 2026

— UCI Compliant Handlebar

“ The jury were impressed by the combination of extreme weight savings, aerodynamic optimisation, and contemporary geometry, awarding it for its cohesive and forward-thinking design.”

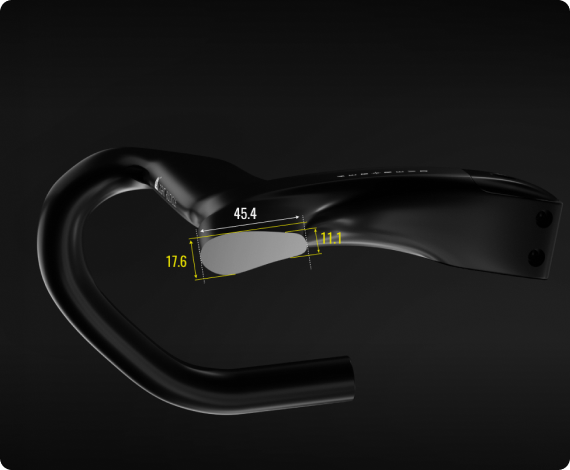

NACA Refined Aerodynamic Performance


learn more>>

The Featherweight Monocoque Soul


learn more>>

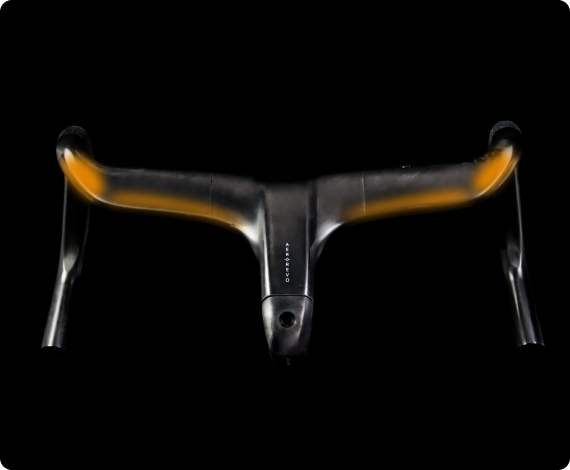

All-Day Comfort Like Never Before


learn more>>

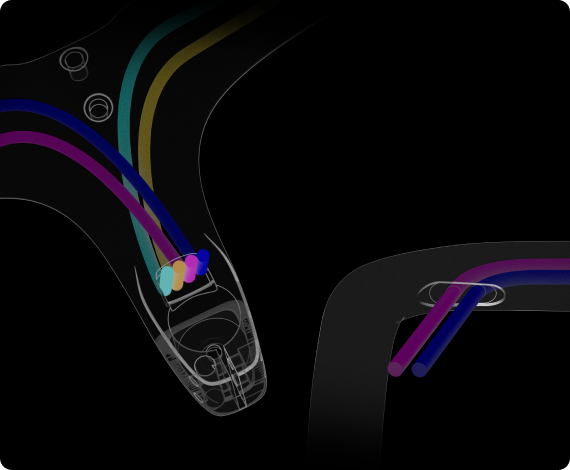

Builder-Friendly Internal Routing


learn more>>

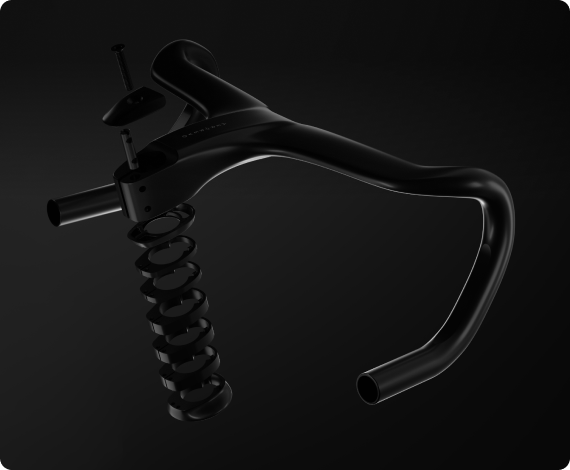

Infinite Compatibility & Absolute Versatility


learn more>>

Triangulated Stability: 3D-Printed Titanium Mastery


learn more>>

TESTING-BACKED PERFORMANCE

At Light Bicycle, every AeroRevo handlebar undergoes a strict testing regime in both controlled laboratory environments and demanding real-world conditions, adhering to the highest ISO and EN standards. The test results provide a quantifiable measure of strength, flex characteristics, and durability that we can use to optimize. The AeroRevo surpasses 55J of impact energy in our lab tests. It’s a benchmark of our commitment to uncompromising quality and the pursuit of championship-winning performance.

Test Data

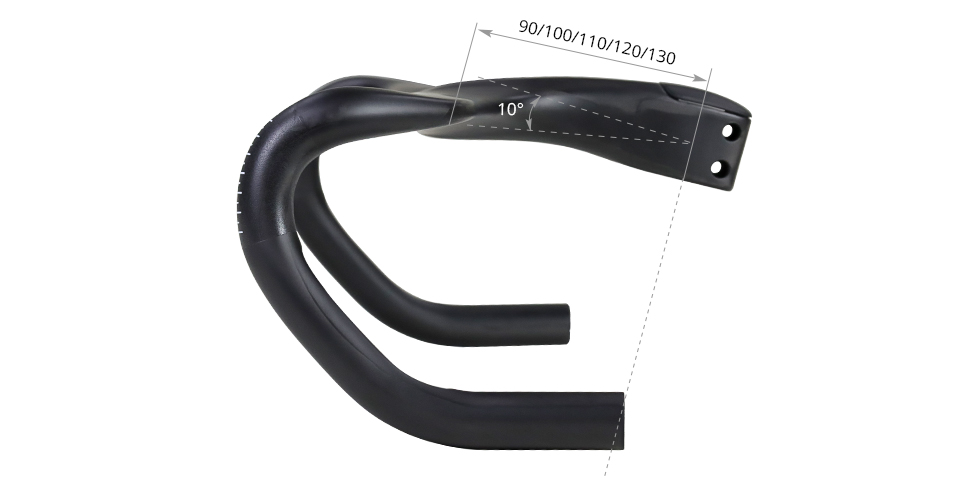

GEOMETRY & SIZING



W1-W2/L (Width/Stem)	90	100	110	120	130
340-380mm	✓	✓	✓	✓
360-400mm	✓	✓	✓	✓	✓
375-415mm	✓	✓	✓	✓	✓
395-435mm	✓	✓	✓	✓
R (Reach)	70mm
D (Drop)	123mm
F°(Flare)	9°
A (Stem Angle)	-10°
S (Stack)	36.3mm
Sweep	4°
Steerer Size	28.6mm

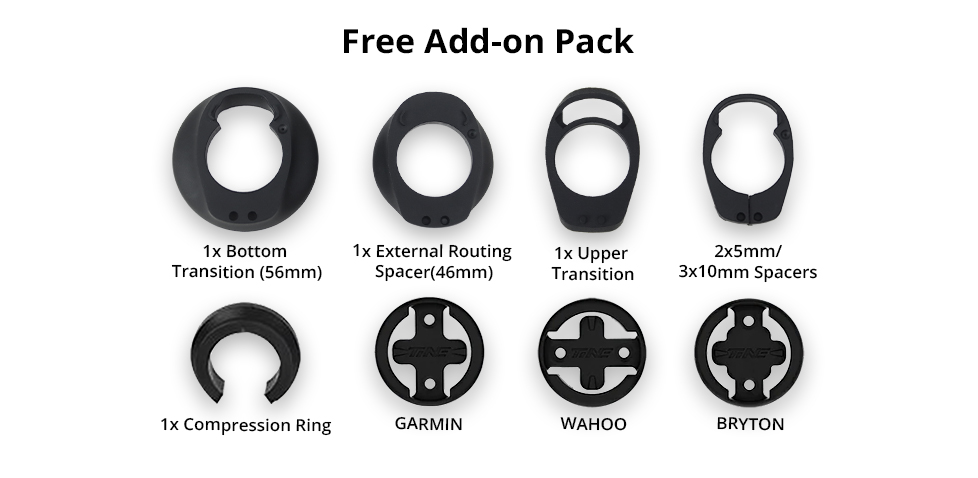

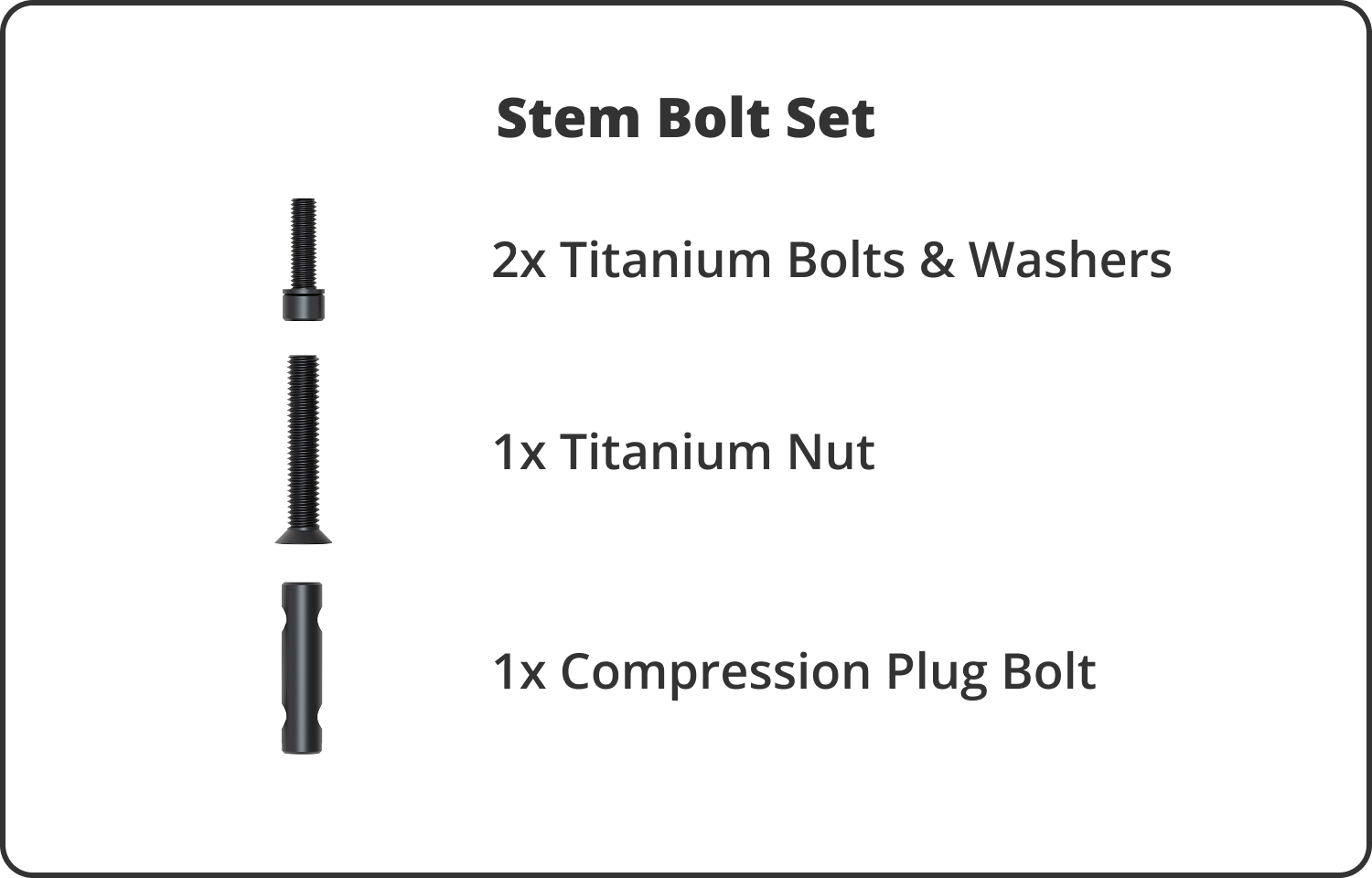

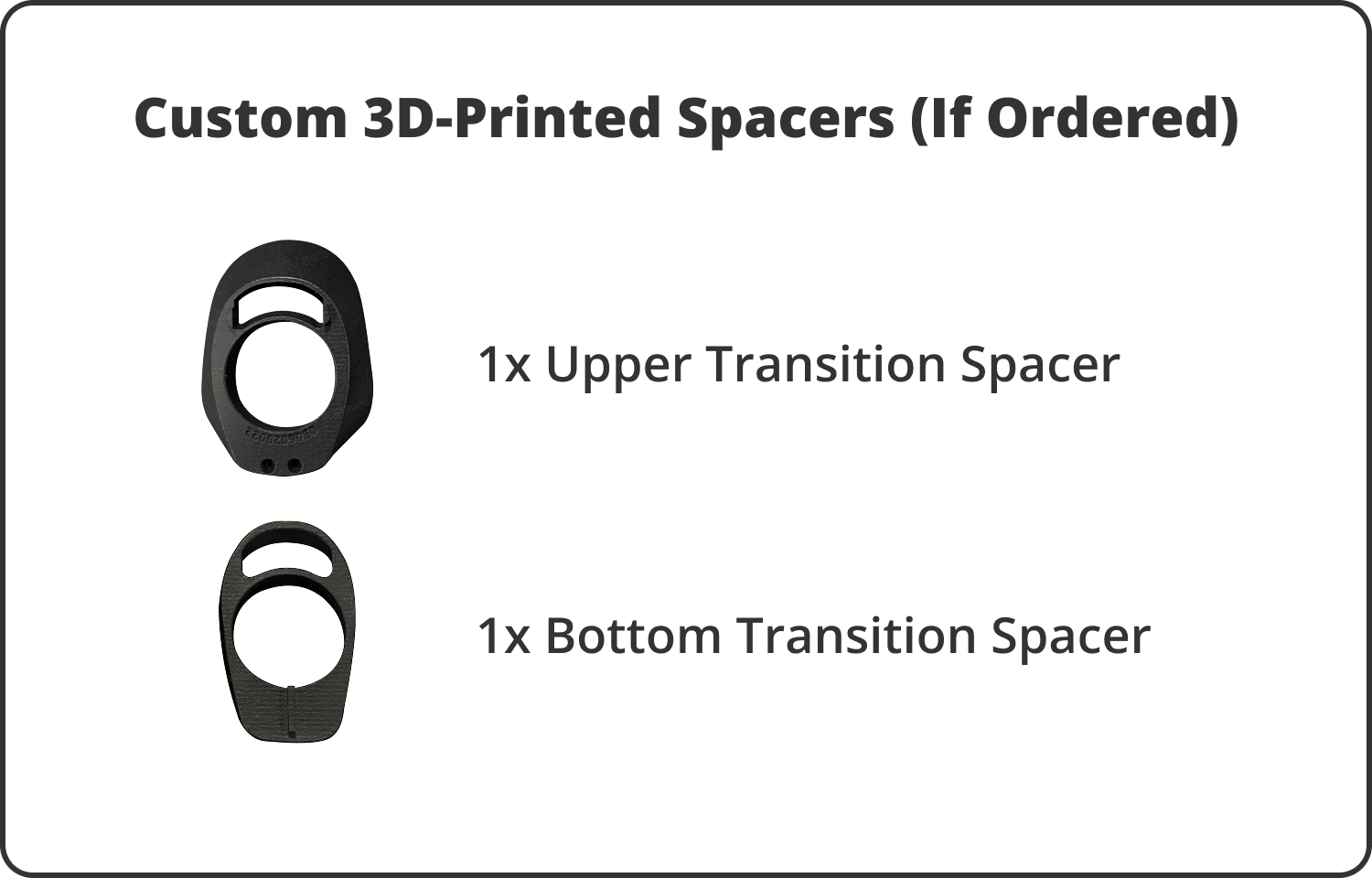

What's in the Box?





light-bicycle-aerorevo-handlebar-order-page-packing-default-aluminium-computer-mont.jpeg




WARRANTY

Ride More, Worry Less

At Light Bicycle, we believe your focus should be on the trail ahead, not the "what ifs." That’s why we’ve built a transparent, honest, and high-value warranty program that truly stands apart. We’re not just providing a warranty; we’re offering a partnership to ensure you get the most out of every ride.
Standard 3-Year Warranty

Your new handlebar is protected by a 3-year warranty against any manufacturing defects. If an issue arises due to our workmanship, we will replace your handlebar quickly and hassle-free. This is our quality promise to you.
Crash Replacement

Accidents are a part of the game. If you damage your handlebar in an accident, we’ve got your back. We offer a 35% discount on a replacement, ensuring you can get back in the saddle without breaking the bank.
"Peace of Mind" Upgrade Pack

For ultimate confidence, opt for our "Peace of Mind" upgrade for just US$129. This entitles you to one free replacement for any reason at all—no questions asked. It’s the perfect way to protect your investment and ride with total freedom.

FAQ

Q1: How much faster will this handlebar make me?

A: While exact numbers depend on many factors (like rider speed, position, and wind conditions), the AeroRevo is designed with a NACA-profile top section to reduce aerodynamic drag compared to a standard round bar significantly. This means you will save watts and be more efficient at any given speed. We will release specific wind tunnel data as soon as it is available.
Q2: Is it compatible with my bike frame for internal routing?

A: Yes, almost certainly. We offer custom 3D-printed headset spacers that are specifically designed to create a seamless, integrated transition for 99% of mainstream bike models from major brands. When ordering, customers can specify their bike model to receive the correct spacers.

See the full bike list.
Q3: How does the AeroRevo compare in weight to other handlebars?

A: With a starting weight of just 250g, the AeroRevo is among the lightest integrated handlebars on the market, rivaling and even beating many of the top-tier brands that cost twice as much.
Q4: Is an integrated handlebar comfortable enough for long rides?

A: Absolutely. We specifically designed it for both performance and comfort. The wide top platform allows for a relaxed hand position, and the 4-degree forward sweep creates a more natural wrist angle, reducing pressure and fatigue on long endurance rides.
Q5: What if I have a crash? What is the warranty?

A: The AeroRevo comes with a 3-year warranty against manufacturing defects. Additionally, we offer an Accident Replacement Program. If a customer damages their handlebar in a crash or accident, they are eligible for a 35% discount on a replacement. This gives them peace of mind.
Q6: How do I choose the right size?

A: We offer 18 different combinations of width and stem length. A customer should choose based on their current setup or a professional bike fit. Our sales team can help guide them based on their height, shoulder width, and current bike geometry.
Q7: What does the base price of $410 include?

A: The base price includes the AeroRevo handlebar with a standard UD matte finish and titanium bolts. It is our "Bundle A" configuration. Upgrades like the 3D-printed titanium computer mount, custom paint, or custom headset spacers are available at an additional cost.
Q8: Does the AeroRevo support semi-internal cable routing?

A: The AeroRevo is engineered for fully internal cable routing or external cable routing. It is not compatible with semi-internal routing configurations.
Q9: Can I use the AeroRevo computer mount on other handlebar models?

A: No. Our computer mount is designed specifically for the proprietary triangular mounting interface of the AeroRevo to ensure absolute stability and is not compatible with other handlebars. However, if you would like a 3D-printed titanium mount tailored for a different handlebar, we offer a custom service for $200 USD.
Q10: Can I opt out of the standard aluminum computer mount?

A: The aluminum computer mount is included as a standard accessory in every AeroRevo package. While it cannot be swapped for a discount, if you prefer not to receive it, please contact our customer service team after placing your order. We will ensure it is excluded from your package during the fulfillment process.

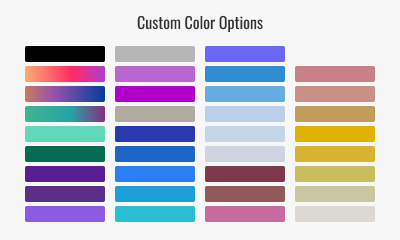

Q11: Is it possible to customize the color of the 3D-printed titanium mount?

A: Absolutely. We offer a variety of premium finishes for our 3D-printed titanium mounts to match your personal style or bike’s aesthetic. Please refer to our custom color chart below to select your preferred finish.

Check the custom color chart.

Gallery

light-bicycle-aerorevo-fully-integrated-cockpit-road-bike

Light Bicycle : This isn't just a handlebar; it's a precision-tuned cockpit tailored to your exact riding style.

light-bicycle-aerorevo-best-integrated-cockpit-road-bike

Light Bicycle : It’s a premium, high-performance road bike cockpit upgrade.

light-bicycle-aerorevo-in-route-road-handlebar

Light Bicycle : At just 250g, it’s one of the lightest integrated handlebars, yet the 55J impact certification gives you total confidence during high-speed descents and sprints.

light-bicycle-aerorevo-best-aero-cockpit-road-bike

Light Bicycle : 2026 DI.A Winner

light-bicycle-aerorevo-integrated-road-handlebar-aero

Light Bicycle : AeroRevo Handlebar

light-bicycle-airia-65-aerorevo-integrated-road-handlebar-review

Hu : The Airia 65 disc all road carbon fiber wheelset is light, stiff and nimble, very impressed given the price point and weight. Really satisfied with the building quality.

View More Reviews >>

COMMENTS

Tiago 2026/03/30

Hello is this handlebar compatible with a giant propel 2027? (the one release this month https://www.giant-bicycles.com/pt/propel-advanced-1-2027 ) thank you

LightBicycle 2026/03/31

Hi Tiago, The AeroRevo handlebar road works with steerer diameter 1-1/8″ (28.6mm), also compatible with 27.2mm steerer with a shim. It seems Giant Propel Advanced 1 features OD2 31.8mm which will be not able to use the AeroRevo handlebar. Just in case could you please double confirm if Giant Propel Advanced 1 2027 is OD1 or OD2? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

No.	Test Item	Test Standard	Compliance Rate	Measured Data
1	Drops Stiffness Vertical Test (Upwards)	50kgf static pressure deformation ≤ ( 11 ) MM	100%	10.01/9.81
2	Drops Stiffness Vertical Test (Downwards)	50kgf static pressure deformation ≤ ( 11 ) MM	100%	10.12/9.94
3	Hoods Stiffness Vertical Test (Downwards)	30kgf static pressure deformation ≤ ( 6 ) MM	100%	5.26/5.26
4	Handlebar In-Phase Loading Fatigue Test	Stage1: F=(+/-400) N=(+/-40.8) kgf, Frequency 2HZ, Cycles (150000)	100%	150,000 cycles, product intact
5	Handlebar In-Phase Loading Fatigue Test	Stage2: F=(+/-440) N=(+/-44.9) kgf, Frequency 2HZ, Cycles (100000)	100%	100,000 cycles, product intact
6	Handlebar Out-Phase Loading Fatigue	Stage1: F=(+/-280) N=(+/-28.6) kgf, Frequency 2HZ, Cycles (150000)	100%	150,000 cycles, product intact
7	Handlebar Out-Phase Loading Fatigue	Stage2: F=(+/-308) N=(+/-31.4) kgf, Frequency 2HZ, Cycles (100000)	100%	100,000 cycles, product intact
8	Impact Test	55J	100%	55J
9	Product Weight	( 250 +/-15 ) g	100%	259g

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Specialized	Tarmac SL8	Colnago	V3
	Tarmac SL7		V4R/C68
	ALLEZ SPRINT		V3R/C64
	Aethos S-Works 2026		V5RS
Trek	MADONE SLR GEN8	Cannondale	SUPERSIX EVO G4
	MADONE SLR GEN7		SUPERSIX EVO G3
	EMONDA SLR		SYSTEMSIX
	MADONE SLR		LAB71
Quick Pro	ER:ONE		Supersix Evo 1 2023
Scott	NEW ADDICT RC	Factor	OSTRO VAM
	ADDICT		02 VAM
	NEW FOIL RC	Rose	Rose Xlite 6
	FOIL		Backroad 2019
Cervelo	R5	Pinarello	Dogma F12
	Caledonia
Please provide bike photo if you have any of the bikes listed below.
BMC	TMR 01
	SLR 01
	Teammachine SLRO1
Bianchi	Specialissima RC
Deda	OCR/BOTECHIA OCR
FOCUS	IZALCOMAX
Merida	REACTO/SCULTURA
Orbea	ORCA OMX/OMR
Ribble	CGR SL
Ridley	HELIUM SLX
	NOAH
TIME	ADH
Wilier	CENTO 10
	Triestina
	ZERO
	FLANTEE SLR/CENTO 10 SL
Can't find your bike model? Please let us know at sales@lightbicycle.com.

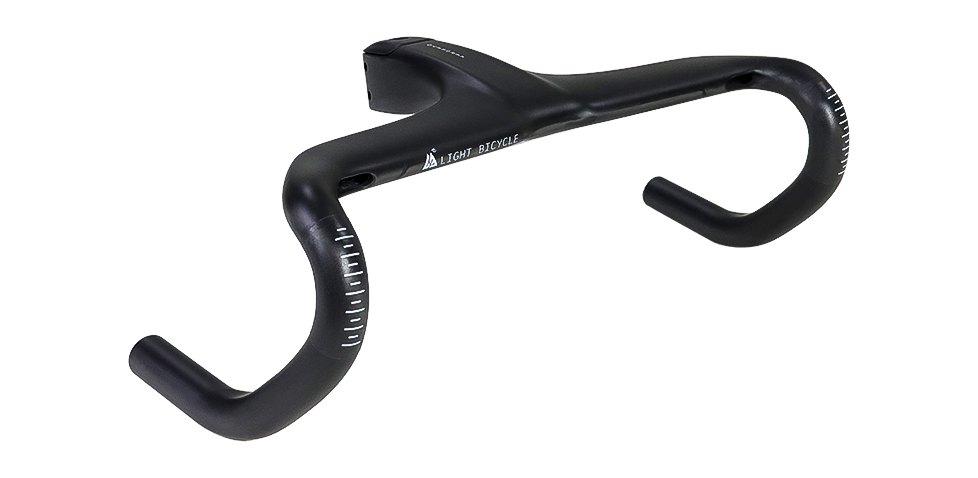

Use	Lightweight Road Riding
Width	340/380mm, 360/400mm, 375/415mm, 395/435mm
Stem Length	90mm, 100mm, 110mm, 120mm, 130mm
Material	Toray T700 & T800 Carbon Fiber
Finish	Matte/Glossy/Paintless/Custom Paint
Weave	UD/Marble
Weight	Starting from 250g
Reach	70mm
Drop	123mm
Stack	36.3mm
Steer Size	1-1/8″ (28.6mm), OD2 not Compatible
Flare	9°
Sweep	4°
Stem Angle	-10°
Impact Strength	Surpasses 55J Impact Test
Rider Weight Limit	120 kgs
Cable Routing	Internal & External
Computer Mount	Default Alloy Aluminum or 3D-Printed Titanium
Spacer	Universal 52mm/56mm or 3D-Printed Custom
Bolts	Titanium
Warranty	3-Year Warranty, contact us for our US$129 Handlebar Free Replacement Program.
