Journey Carbon Gravel Frame

Build Your Frameset Journey Gravel CX Adventure Tour

Find your size and choose from the 4 color combos available.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

We do not stock this product at the European warehouse.

The frameset is available only from the Global warehouse (ships worldwide) currently.

Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

We do not stock it at the Australian shop. See what's available.

This product is currently available from the Global shop only.

Please email us (sales@lightbicycle.com) if you want to customize.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

We do not stock this product at the North American warehouse.

The frameset is available only from the Global warehouse (ships worldwide) currently.

Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Size This is a required option.

Size	XS 450mm	S 480mm	M 510mm	L 540mm
Rider Height	155-165cm 5’1”-5’5”	165-175cm 5’5”-5’9”	175-185cm 5’9”-6’1”	185cm+ 6’1” +

Frame Color This is a required option.

Non-removable waterslide decal refers to the lettering of "JOURNEY" and the triangle logo.

Forest Green with black decal

Classic Black with deep grey decal

Metallic Silver with black decal

Midnight Blue with light grey decal

Forest Green

Classic Black

Metallic Silver

Midnight Blue

Toptube Sticker This is a required option.

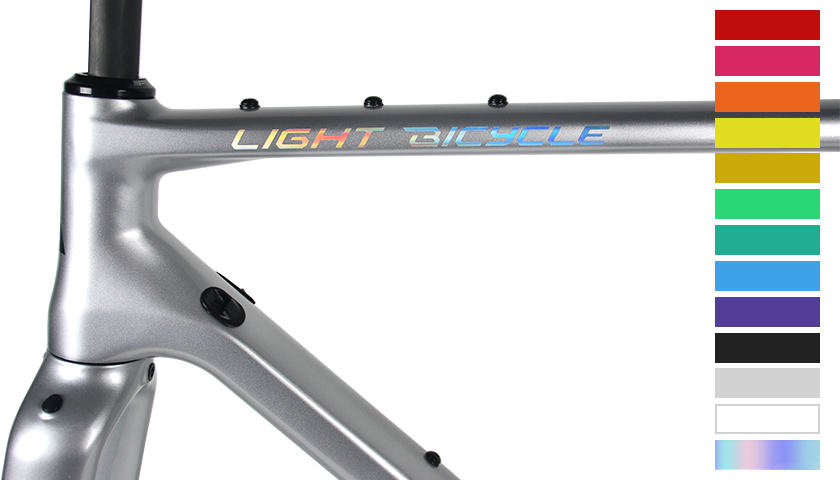

Toptube vinyl stickers refer to the lettering of "Light Bicycle" on the both sides of toptube.

They are removable and up to 13 colors for you.

Customized stickers are also available that you could select "Customized" option and we will contact you during the order processing.

Custom Sticker

Black Sticker

Blue Sticker

Green Sticker

Magenta Sticker

Orange Sticker

Red Sticker

White Sticker

Yellow Sticker

Silver Sticker

Gold Sticker

Turquoise Sticker

Purple Sticker

Oil Slick Sticker

Recon Pro orders start shipping in October.

- + Set

Size This is a required option.

Frame Color This is a required option.

Forest Green

Classic Black

Metallic Silver

Midnight Blue

Toptube Sticker This is a required option.

Custom Sticker

Black Sticker

Blue Sticker

Green Sticker

Magenta Sticker

Orange Sticker

Red Sticker

White Sticker

Yellow Sticker

Silver Sticker

Gold Sticker

Turquoise Sticker

Purple Sticker

Oil Slick Sticker

Blank(No Sticker)

Recon Pro orders start shipping in October.

- + Set

Default Settings

Frame‌

With‌ ‌non-removable‌ ‌waterslide‌ ‌decals‌ ‌by‌ ‌default‌

Fork‌

Carbon,‌ ‌D-shape,‌ ‌with‌ ‌the‌ ‌same‌ ‌coating‌ ‌as‌ ‌the‌ ‌frame‌

Seat Post

Carbon, 31.6mm × 350 mm, with decals (white)

Accessories

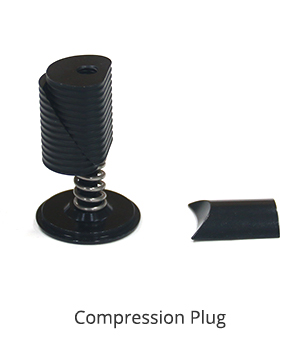

Headset / D-shape compression plug / 12mm thru axles (1 pair) / cable stoppers / derailleur hangers

Piece Weight: 1762.00g+/-50

Subtotal: USD 1100+

Piece Weight: 1762.00g+/-50

Subtotal: USD 1100+

Lead time: in stock, typically ships in 3 business days

ADD TO CART

Specifications

Frameset

Model Journey
Introduction >>
Size XS, S, M, L
Color Matte Classic Black (Grey Decals), Glossy Midnight Blue (Light Grey Decals), Glossy Forest Green (Black Decals), Glossy Metallic Silver (Black Decals)
Fork Light Bicycle Carbon
* Coating colors same as the frame
Seatpost Light Bicycle Carbon (31.6 × 350mm)
Headtube 1 1/8”-1 1/2”
Bottom Bracket BSA Threaded (68mm)
Disc Brake Flat mount (140 / 160mm)
Axle Spacing 12 × 100mm Front
12 × 142mm Rear
Max Chain Ring 48/36T (2X), 42T (1X)
Groupset Compatibility Mechanical / Electronic (Di2/ eTap / Campy EPS)
* Fully internal for electronic groupset only
Max Tire Size 700 × 50C / 27.5 × 2.0” (S, M, L)
700 × 35C / 27.5 × 2.0” (XS)
Suggested Use Gravel, CX, Adventure, Tour
Accessories FSA Integrated Headset, Derailleur Hangers, Cable Routing Grommets, Thru-Axles

Weight

Frame Weight XS 1100+/-50g
S 1145+/-50g
M 1160+/-50g
L 1200+/-50g
Fork Weight 445g
Seatpost Weight 217g

View User Manual >>

Geometry & Sizing

If you are on the edge of a suggested size: consider sizing up if you have longer legs or you want a more relaxed position; or size down for a more aggressive and maneuverable ride. Find Your Size >>

Height Recommendations

Size	XS 450mm	S 480mm	M 510mm	L 540mm
Rider Height	155-165cm 5’1”-5’5”	165-175cm 5’5”-5’9”	175-185cm 5’9”-6’1”	185cm+ 6’1” +

Frame size	XS	S	M	L
A-Seat Tube	450mm	480mm	510mm	540mm
B-Effective Top Tube	521mm	542mm	559mm	574mm
C-Head Tube Length	110mm	137mm	165mm	195mm
D-Chainstay Length	415mm	420mm	425mm	430mm
E-Head Tube Angle	70.0°	70.8°	70.8°	70.8°
F-Seat Tube Angle	73.5°	73.5°	73.5°	73.5°
G-BB Drop	77.5mm	75.0mm	75.0mm	72.5mm
H-Front Center	594mm	604mm	622mm	639mm
I-Fork Length	400mm	400mm	400mm	400mm
J-Wheel Base	997mm	1013mm	1036mm	1059mm
K-Rake	56mm	51mm	51mm	51mm
L-Reach	362mm	375mm	384mm	392mm
M-Stack	537mm	563mm	590mm	616mm
N-Steerer Tube	300mm	300mm	300mm	300mm
O-Integrated Crown Race	126°	126°	126°	126°
A-Seat Tube	17.7″	18.9″	20.1″	21.3″
B-Effective Top Tube	20.5″	21.3″	22.0″	22.6″
C-Head Tube Length	4.3″	5.4″	6.5″	7.7″
D-Chainstay Length	16.3″	16.5″	16.7″	16.9″
E-Head Tube Angle	70.0°	70.8°	70.8°	70.8°
F-Seat Tube Angle	73.5°	73.5°	73.5°	73.5°
G-BB Drop	3.05″	3.0″	3.0″	2.9″
H-Front Center	23.4″	23.8″	24.5″	25.2″
I-Fork Length	15.7″	15.7″	15.7″	15.7″
J-Wheel Base	39.3″	39.9″	40.8″	41.7″
K-Rake	2.2″	2.0″	2.0″	2.0″
L-Reach	14.3″	14.8″	15.1″	15.4″
M-Stack	21.1″	22.2″	23.2″	24.3″
N-Steerer Tube	11.8″	11.8″	11.8″	11.8″
O-Integrated Crown Race	126°	126°	126°	126°

Highlights

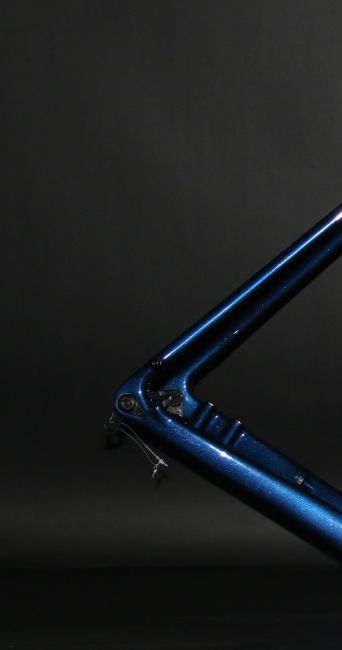

Carbon Construction

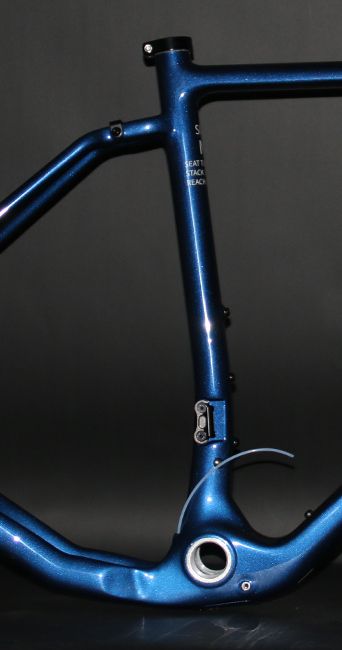

Internal Cable Routing

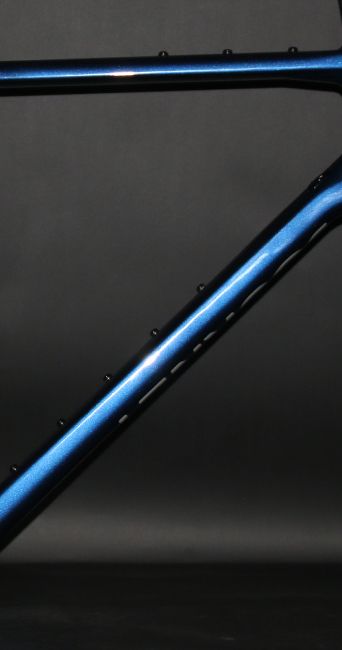

Smart Mounts

Huge Tire Clearance

Recommended Wheels

Build your gravel bike with these wheels for a premium riding experience.

700C disc bike wheels 27mm wide 24mm deep clincher for cyclocross road and gravel bikes

700c-Falcon-WHEELSET
AR24 DISC-27mm wide-24mm deep

USD: 611+ Standard 1119g+/-25

700C tubeless bicycle wheels 28mm wide 46.5mm deep clincher for cyclocross road and gravel bikes

700c-Falcon Pro-WHEELSET
AR465 DISC-28mm wide-46.5mm deep

USD: 824+ Standard 1306.4g+/-25

700C tubeless bicycle wheels 32mm wide 40mm deep clincher for cyclocross road and gravel bikes

700c-Falcon Pro-WHEELSET
WR40 DISC-32mm wide-40mm deep

USD: 804+ Standard 1313g+/-25

700c-Falcon-WHEELSET
AR24 DISC-27mm wide-24mm deep

USD: 611+ Standard 1119g+/-25

700c-Falcon Pro-WHEELSET
AR465 DISC-28mm wide-46.5mm deep

USD: 824+ Standard 1306.4g+/-25

700c-Falcon Pro-WHEELSET
WR40 DISC-32mm wide-40mm deep

USD: 804+ Standard 1313g+/-25

WARRANTY

We warranty the gravel frame, fork, and seat post from manufacturer's defects in materials and workmanship for a period of 3 years from the date of purchase. Within the warranty period, if your frameset is damaged in a crash, we offer a 10% crash replacement.

WHAT IS IN THE BOX

Gallery

carbon-gravel-bike-lightbicycle-journey-frameset-ar25-wheels

James : Light Bicycle Journey in Forest Green, AR25 wheelset with DTSwiss 180 hubs & MicroSpline, Dura-Ace calipers/rotors, XTR 10-51 cassette/pedals, E-Thirteen XCX cranks/BB, GRX 12S mechanical levers & derailleur, S-Works Pathfinder 42c tires, Lexon Unox carbon integrated gravel bar. Bike weighs 16.5 pounds ready to ride and is an absolute rocketship. She has opened up my cycling experiences to much longer distance rides which is essential for my fitness goals. Easily my favorite bike I have built so far!!!

United States

light-bicycle-journey-gravel-frameset-with-ar25-carbon-wheels

James : Here is the completed bike, I wrapped the bars & put it on a scale. The weight is 7430g.

United States

light-bicycle-journey-on-wr50-carbon-wheels

Paul-Julien : I love my custom wheelset! I have built my bike and rode the whole summer with it. I mostly shopped the Journey frameset for those characteristics: Carbon (lightweight) Many mounting points Possible to mount fenders and a rack Possible internal cable routing Accommodate large tires (700x45C) Accepts 2x drivetrain

Canada

Light-Bicycle-gravel-touring-bike-frameset-review

Add a comment...

United States

Light-Bicycle-Journey-gravel-bikepacking-bike

Philipp : I love the Light Bicycle Journey frame for bike packing!

Switzerland

Light-Bicycle-Journey-gravel-touring-bike

Kurt : Frame and wheels all assembled!

United States

Light Bicycle : Frameset (Fork & Seatpost): Light Bicycle Journey Size L Metallic Silver Handlebars: Easton EC70 AX 46mm Carbon Stem: Phoenix Team 31.8mm Saddle: WTB Volt Shifter: Sram Force AXS e-Tap 12-Speed Brakes: Sram Force e-Tap AXS 2-piston Wheels: WR40 braided weave, BERD Polylite spokes, Chris King Hubs, Sapim secure lock nipples Pedals: Shimano XTR M9100 Crankset: Sram Force 1 DUB 36t 170mm Cassette: Sram XG-1270 10-36t Rotor: Sram Centerline CenterLock – 160mm Chain: Sram Force Flattop 12-Speed Tires: Vittoria Terreno Dry Anthracite 38c

Light Bicycle : Journey Metallic Silver Glossy Carbon Frameset (With Black Decals & oil slick sticker)

View More Reviews >>

COMMENTS

Henning 2023/01/03

Hey, can I buy one of your d-shaped forks for my titanium bike with tapered headset? Best regards, Henning

LightBicycle 2023/01/06

Hi Henning, Normally this gravel fork is sold together with frame. Can you confirm that the fork is compatible with your gravel frame? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mat 2022/04/04

What is the maximum torque for the Rear Derailleur Hanger Bolt, Seat Post Clamp, and the Compression Plug? Thanks

LightBicycle 2022/04/12

Hi Mat, The recommended torque for the derailleur hanger bolt is 3Nm, and that for the seat post clamp is 5Nm. For the compression bolt, the suggested torque is 7-8Nm. Thanks, Light Bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Sean 2021/10/22

Can the front derailleur routing be used with a full housing up into the seat tube for a dropper? Thanks.

LightBicycle 2021/10/22

Hi Sean, Do you have a 1X crankset? Just for confirming, you want to use the routing hole located on the downtube, correct? You can use it for dropper Seatpost. But the diameter might not be big enough. Remove the internal cable housing, and drill the hole a little bigger to fit the cable on this gravel bike frameset. Thanks, Lightbicycle
