Build Your Recon Pro RIM EN732

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

28H

32H

36H

Full Custom

Finish This is a required option.

Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Crystal Painting: A fantastic painting effect designed by Light Bicycle.

Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

Paintless

Glossy Crystal Painting (silver) USD +20

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

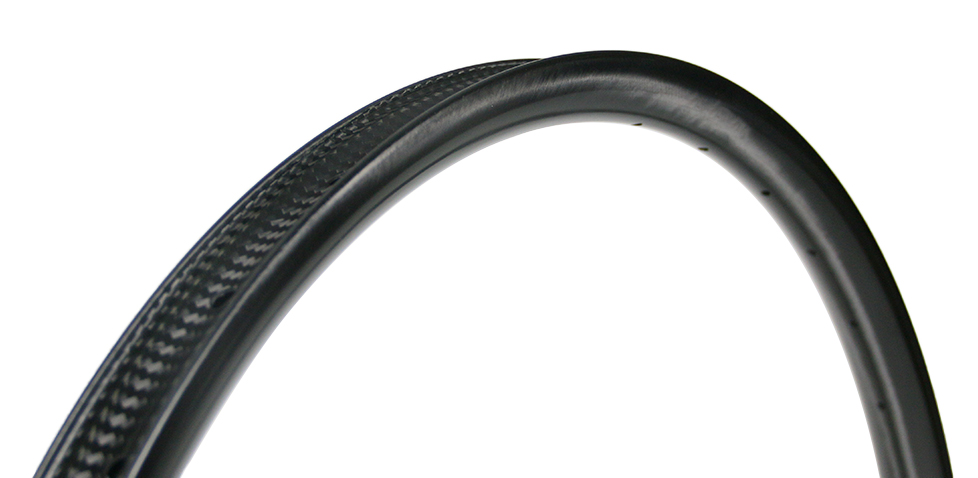

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

Decal This is a required option.

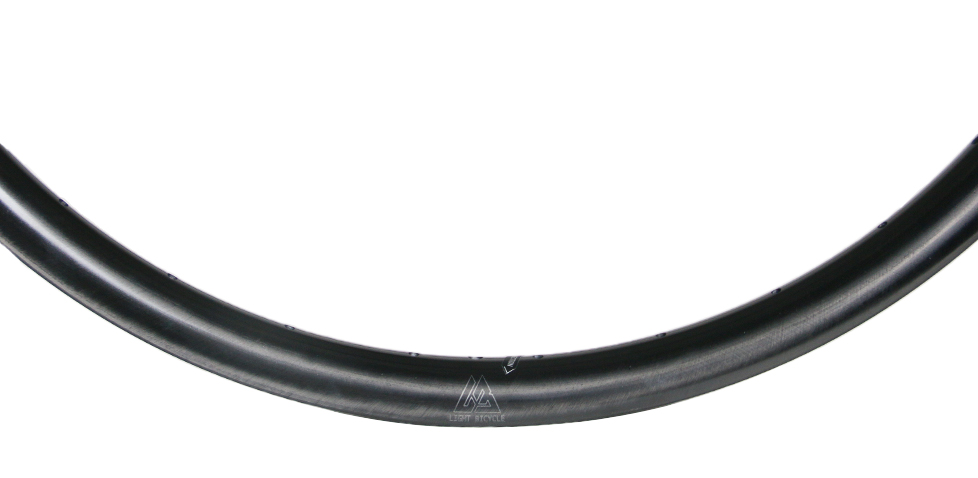

1. Grey Laser Engraving (Recon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.

2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.

Grey Laser Engraving (Recon Pro)

Blank (No decal)

Full Custom (Laser only) USD +5

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.

32H

Finish This is a required option.

The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Paintless

Weave This is a required option.

Rim Warranty This is a required option.

5 Years

Lifetime USD +100/rim

Valve Stem This is a required option.

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.

Apply Tubeless Tape: The tubeless tape with high tensile strength is tightly installed on the wheel(s) at industrial-level for you to ride carefree tubeless at any conditions.

None

Add Tubeless Tape USD +8 each

Decal This is a required option.

Grey Laser Engraving (Recon Pro)

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 470.00g+/-15

Subtotal: USD 289+

Piece Weight: 470.00g+/-15

Subtotal: USD 309+

PREVIOUS NEXT

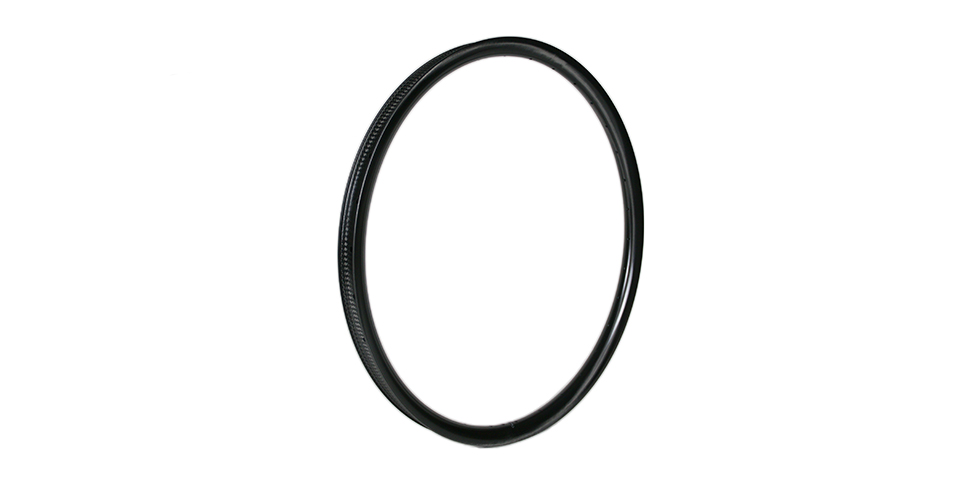

RIM SPECS

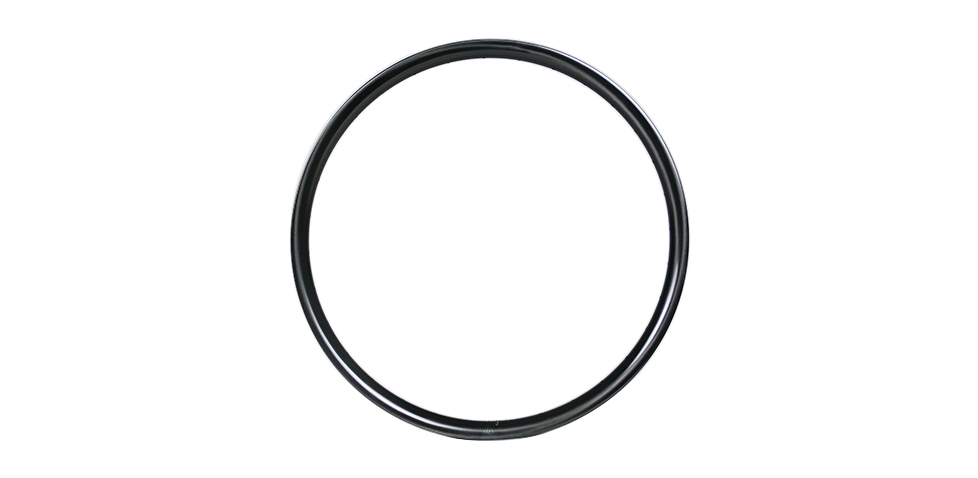

Model EN732
Material Toray T700 & T800 Premium Carbon Fiber
Size 27.5"/650B (ETRTO 584mm)
Series RECON PRO
Intended Use Enduro/DH
Bead Type Hookless
Tubeless Capable Yes

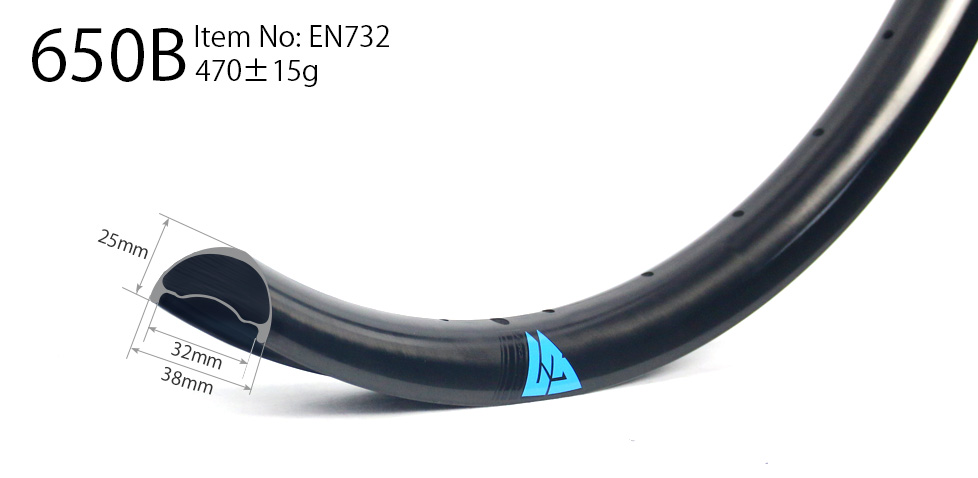

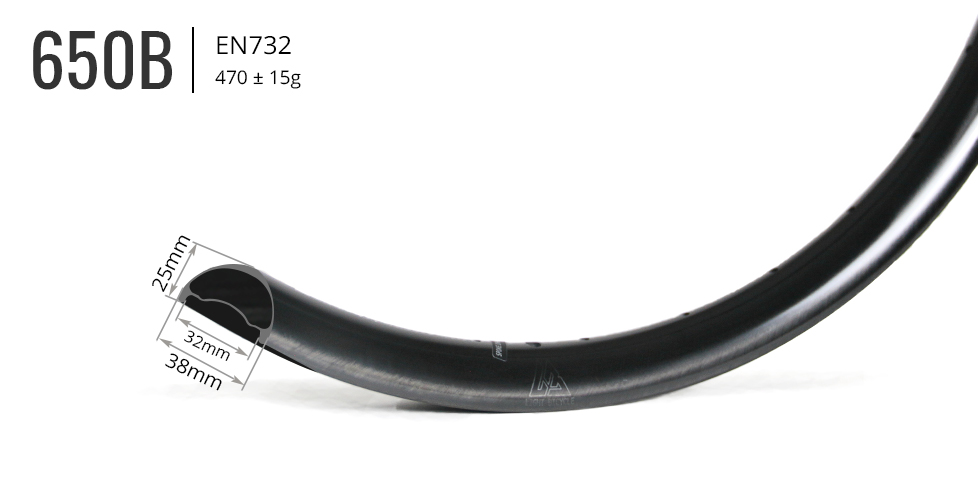

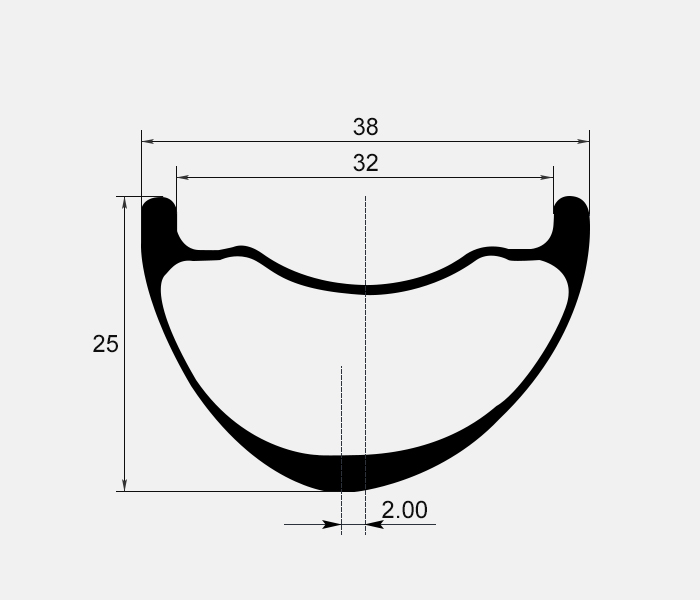

Inner/Outer Width 32mm/38mm
Depth 25mm
ERD 550mm (not including nipple head dimension)
Weight 470+/-15g

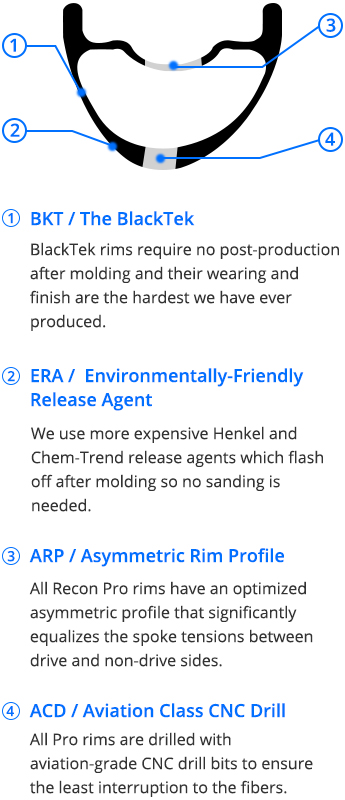

Profile Asymmetric (2mm)
Max Cyclist Weight (on flat ground) 140kg/ 309lbs
Spoke Hole Angle ±7°
Spoke Tension 115~130kgf front disc side and rear drive side
Max Tire Pressure 30psi/ 2.75bar
Recommended Tire Width 2.3" ~ 3.1"

The new Enduro workhorse in our lineup is ready for today’s hard charging riders and racers. A heavily reinforced layup and new manufacturing technique will bring newfound confidence to your ride.

Targeted towards the high demands of top level enduro racing, the EN732 features a 32mm internal width, making it suited to the new breed of wide trail tires in the 2.3-2.8" range. This rim is stiff and precise for exceptional tracking through rough terrain, featuring a heavy duty layup with thickened sidewalls for increased protection against rock strikes and impact resilience. These rims are suitable for heavier riders, and feel at home on longer travel bikes.

E-bike Approved! This rim is designed to be compatible with mid-drive e-bikes.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Model: EN732
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 27.5"/650B (ETRTO 584mm)
Series: RECON PRO
Intended Use: Enduro/DH
Bead Type: Hookless
Tubeless Capable: Yes
Inner/Outer Width: 32mm/38mm
Depth: 25mm
ERD: 550mm (not including nipple head dimension)
Weight: 470+/-15g
Profile: Asymmetric (2mm)
Max Cyclist Weight (on flat ground): 140kg/ 309lbs
Spoke Hole Angle: ±7°
Spoke Tension: 115~130kgf front disc side and rear drive side
Max Tire Pressure: 30psi/ 2.75bar
Recommended Tire Width: 2.3" ~ 3.1"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

The new Enduro workhorse in our lineup is ready for today’s hard charging riders and racers. A heavily reinforced layup and new manufacturing technique will bring newfound confidence to your ride.

Targeted towards the high demands of top level enduro racing, the EN732 features a 32mm internal width, making it suited to the new breed of wide trail tires in the 2.3-2.8" range. This rim is stiff and precise for exceptional tracking through rough terrain, featuring a heavy duty layup with thickened sidewalls for increased protection against rock strikes and impact resilience. These rims are suitable for heavier riders, and feel at home on longer travel bikes.

E-bike Approved! This rim is designed to be compatible with mid-drive e-bikes.
Specs
Rims

Model: EN732

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 27.5"/650B (ETRTO 584mm)

Series: RECON PRO

Intended Use: Enduro/DH

Bead Type: Hookless

Tubeless Capable: Yes

Inner/Outer Width: 32mm/38mm

Depth: 25mm

ERD: 550mm (not including nipple head dimension)

Weight: 470+/-15g

Profile: Asymmetric (2mm)

Max Cyclist Weight (on flat ground): 140kg/ 309lbs

Spoke Hole Angle: ±7°

Spoke Tension: 115~130kgf front disc side and rear drive side

Max Tire Pressure: 30psi/ 2.75bar

Recommended Tire Width: 2.3" ~ 3.1"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

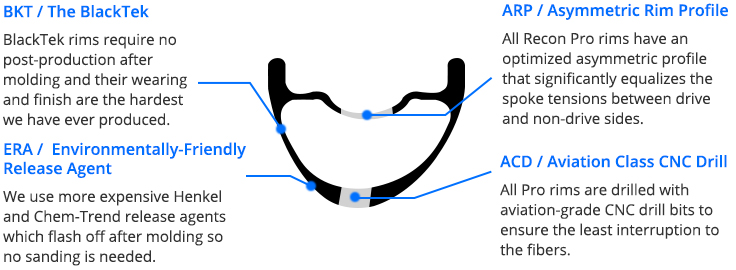

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

lightbicycle-mullet-wheels-for-enduro-bike

Toni : Best wheels I ever ride. EN732/EN932 mullet

Switzerland

light-bicycle-en732-wheels-mountain-bike-trip

MEYER : From my recent trip to Nepal with The LB wheel set. The wheels were perfect, no loose spokes and no damage.

China

mullet-mountain-bike-light-bicycle-carbon-wheels

Walt : I have been riding a mullet setup with the en732 and en932 models that I built up on Project 321 hubs. I have ridden in whistler bike park on these rims and across the southeast including Windrock and Jarrods Place. These rims have taken everything I can throw at them. Super impressed with these rims.

United States

light-bicycle-mullet-mtb-wheelset-mullet32

Light Bicycle : Rims: EN932 (29 Front) EN732 (27.5 Rear) Paintless UD 32H With Access Holes Hubs: Hope Pro 5 Silver 20/110mm Boost 12/157mm Super Boost 6-bolt 108 POE Sram XD Spokes: Pillar Aero X-TRA 1420 Black J-bend Nipples: Sapim Aluminium Black External Tubeless Tape: With

light-bicycle-en732-27.5-boost-enduro-wheelset-i9-hydra

Light Bicycle : Rims: EN732 Braided UD Paintless External Hole With Drain Holes With Access Holes Hubs: Industry Nine Hydra Black 15/110mm 12/148mm BOOST J-bend 6-bolt 32/32H 690T Shimano Micro Spline Alloy Spokes: Sapim Race Black J-bend Nipples: Sapim Aluminium Black Polyax Secure Lock External

Santa-Cruz-Nomad-5-on-Light-Bicycle-EN732-wheels

Christenson : Start using LB rim from nomad 4 to upgrade nomad 5 the LB rim is superb and really love it for all raiding styles.

Singapore

light-bicycle-en732-enduro-carbon-wheel-with-schwalbe-tubeless-tire

Kelvin : Had received the rim and extremely satisfying

Singapore

recon-pro-650b-en732-paintless-finish-carbon-wheelset

Light Bicycle : EN732 UD 32H With Holes external hole paintless 5 Years EN732 UD 32H With Holes external hole paintless 5 Years HUB-F 6-bolt 32H J-bend Blue Hope Pro 4 NBK 20 / 110mm BOOST DH HUB-R 44T 6-bolt J-bend Blue Hope Pro 4 32H 12 / 157mm NBK Sram XD Alloy SPOKE Sapim Race Black J-bend uncertain NIPPLE Sapim Aluminium Blue Polyax Secure Lock External

View More Reviews >>

COMMENTS

Shane 2020/11/28

Hi i have heard about your wheel-sets and was wonder if you could do a 29 and 27.5 mullet wheelset?

LightBicycle 2020/11/28

Hi Shane, Yes, we can make a mixed size wheelset for your mullet bike. Normally, it is front 29er /rear 650B wheelset. You can list the wheelset mtb specs here, we can quote accordingly for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Jim 2019/09/09

Does the Canadian factory offer building onto the customers own hubs? I'm interested in this rim with some Raceface Vault J-Bend hubs.

LightBicycle 2019/09/10

Hi Jim, Yes, our North American warehouse can build our 650B bike rims with your hubs. Will you only buy 2 rims, right? What spokes do you like? sapim cx-ray bladed or Sapim D-light round? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

matt 2019/04/15

Hi. I was wondering how much the EN732 rims cost? Thanks, Matt.

LightBicycle 2019/04/16

Hi Matte, The EN732 you are interested in is USD289 per rim. This 650B rims are recon pro series, with new technologies, more durable and longer warranty service. So, the price is higher. We also have cheaper offers on 27.5 bike rims carbon fiber. It is USD150~USD180 each, like AM733/EN733. Please check below differences between two series and let us know which you prefer. https://www.lightbicycle.com/newsletter/differences-briefings-for-recon-pro---recon.html Thanks, Lightbicyle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Recon Pro RIM EN732

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
