Build Your Falcon Pro RIM Hyper Moto
All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.
Global Shop
NA Shop
EU Shop
AU Shop
Ships worldwide. See what's on sale>>
Drain Hole This is a required option.
With Drain Holes
Center Channel Hole This is a required option.
No Access Holes
Version This is a required option.
Front Flyweight / Rear Standard
Weave This is a required option.
The elegant hand-twisted weave, Braided UD, continues to gain traction among our riders.
The braided pattern requires a more sophisticated and time-consuming carbon layup, compared to traditional UD (Uni-Directional) and 3K weaves.
Get a wheelset that sets your bike apart from others' now.
Braided UD
DEFAULT SETTINGS
RIMS
Matte, UD, hook, blank (no decal), 24h
Paintless, UD, blank (no decal), 28h, with access holes
Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes
HUBS
DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t
12/100mm (F) & 12/142mm (R)
DT Swiss 350 Straightpull Centerlock Sram XD 18t
15/110mm (F) & 12/148mm (R) boost
DT Swiss 350 straightpull centerlock Shimano Road 11s 36t
12*100mm (F) & 12*142mm (R)
SPOKES & NIPPLES
Sapim CX Sprint-rear drive side / CX Ray-other sides
Sapim aluminum black external
Sapim CX Ray & Sapim aluminum black external
Sapim CX Sprint-rear drive side / CX Ray-other sides
Sapim aluminum black external
ACCESSORIES
2 valves & 1 spare 18t ratchet
2 valves & 2 adapters (centerlock to 6-bolt)
2 valves & 1 spare 18t ratchet
Note: the wheelset price includes the warehouse transfer cost ($80).
Piece Weight: g+/-
Subtotal: USD +
Lead time: typically ships in 2 days
ADD TO CART
You
missed some options.
Added to cart! View cart
This item has gone out of stock. The new inventory is still in transit, and we’ll update this page asap when the wheelsets are available. More info about our European warehouse.
You can order it from our Global Warehouse or have a look at other products.
If you have any questions or want faster shipping, please email us (sales@lightbicycle.com) or leave a comment.
We do not stock this item at the European warehouse. See what we stock currently.
You can order it from our Global warehouse.
Please email us (sales@lightbicycle.com) with your requests if you want a custom rim/wheelset.
Center Channel Hole This is a required option.
No Access Holes
DEFAULT SETTINGS
RIMS
Matte, UD, hook, blank (no decal), 24h, with drain holes
Paintless, UD, blank (no decal), 28h, with access holes
HUBS
DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t
12*100mm (F) & 12*142mm (R)
DT Swiss 350 Straightpull Centerlock Sram XD 18t
15/110mm (F) & 12/148mm (R) boost
SPOKES & NIPPLES
Sapim CX Sprint-rear drive side / CX Ray-other sides
Sapim aluminum black external
Sapim CX Ray & Sapim aluminum black external
ACCESSORIES
2 valves & 1 spare 18T ratchet
2 valves & 2 adapters (centerlock to 6-bolt)
Note: the wheelset price includes the warehouse transfer cost ($80).
Piece Weight: g+/-
Subtotal: USD + (discount price)
Lead time: typically ships in 3 business days
ADD TO CART
You
missed some options.
Added to cart! View cart
This item has gone out of stock currently.
More products are in transit and we will update the availability soon.
Leave a comment or email us (sales@lightbicycle.com) if you want to get notified when available.
You can also order this product from other shops.
We do not stock it at the Australian shop. See what's available.
This product is currently available from the Global shop only.
Please email us (sales@lightbicycle.com) if you want to customize.
Our apologies, we do not offer this item at the Global warehouse.
Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.
Our apologies, we do not stock this item at the North American warehouse.
Our Global warehouse can make any rim model and ship worldwide.
Feel free to email us (sales@lightbicycle.com) if you want custom builds. We’ll get back to you in 24hrs.
- 1
RIM
- 2
ACCESSORIES/OTHERS
- 3
OVERVIEW
RIM
Shopping Style
|
Options
Features |
Quick Buy | Full Custom |
|---|---|---|
| Inventory | Parts in stock (Assembled upon order) |
Manufactured upon order |
| Customization | Least customizable | 100% Customizable |
| Lead Time | ≤ 3 days | 4 weeks typically |
| Availability | Limited models | All models |
| Shipping | Worldwide | Worldwide |
Quick Buy (In Stock)
Full Custom (Made to Order)
DEFAULT SETTINGS
Rims
Hook, matte, UD, with drain holes
Hook, matte, UD, with access holes, with drain holes
Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes
Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes
Paintless, UD, 5-year warranty, no drain holes
Grooved graphene surface, hook, matte, UD, with access holes, with drain holes
Grooved graphene surface, hook, matte, UD, no access holes, with drain holes
Matte UD, 32H, Centered (Staggered)
Hubs
Hope Pro 4 Fatsno J-bend 6-bolt
15/150mm (F) & 12/197mm (R) Sram XD
Straightpull centerlock black 24H
12/100mm & 12/142mm
Shimano Road 11S
DT Swiss straightpull / Bitex j-bend, centerlock, 28H
J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H
15/110mm boost & 12/148mm boost Sram XD
DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear
100mm QR & 130mm QR Shimano Road 11S
Spokes
Sapim CX Ray black
Sapim D-Light
Accessories
No decals/valves/tape
No decals/valves/tape/pads
No decals/valves
Piece Weight: g+/-
Subtotal: USD +
Lead time:
ADD TO CART
You
missed some options.
You
missed some options.
Added to cart! View cart
Brake System This is a required option.
Disc
Non Disc - High TG Surface
Non Disc - Grooved Graphene Surface USD +30
Hole Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.
Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
Full Custom
28H
36H
Finish This is a required option.
Paintless
Full Custom
Weave This is a required option.
UD
Full Custom
Drain Hole This is a required option.
With Drain Holes
No Drain Holes
Rim Warranty This is a required option.
5 Years
Lifetime USD +100/rim
Decal This is a required option.
Blank (No decal)
Blue
Green
Magenta
Orange
Red
White
Yellow
Silver
Gold
Turquoise
Purple
Brake Pads This is a required option.
None
Add Shimano-type Brake Pads USD +10
Valve Stem This is a required option.
We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions
None
Add Valve Stem USD +7 each
Tubeless Tape This is a required option.
Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape
Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.
You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.
None
Add Tubeless Tape USD +6 each
Recon Pro orders start shipping in October.
-
+
PCS
Piece Weight: 270.00g+/-15
Subtotal: USD 299+
PREVIOUS
NEXT
You
missed some options.
You
missed some options.
Added to cart!
View cart or continue
shopping.

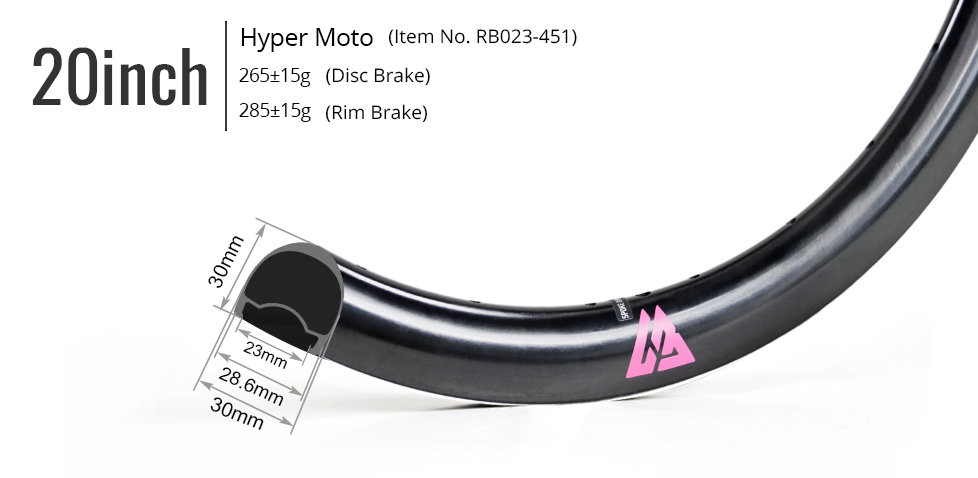

RIM SPECS
- Rim Model Hyper Moto
- Material Toray T700 & T800 Premium Carbon Fiber
- Size 20" (ETRTO 451mm)
- Intended Use BMX Racing
- Bead Type Hook
- Tubeless Capable Yes
- Inner/Outer Width 23mm/28.6mm
- Depth 30mm
- BSD 451mm
- ERD 408.5mm (not including nipple head dimention)
- Rim Weight 270+/-15g (disc), 285g+/-15g (non-disc)
- Profile Symmetric (0mm)
- Max Cyclist Weight (on flat ground) 55kg/121lbs
- Spoke Tension 120~130kgf front disc side and rear drive side
- Max Tire Pressure 110psi/ 7.58 bar
- Recommended Tire Width 20×1-3/8"
TECH
Hyper Moto is available in both rim brake (for rear V-brake bike) and disc-brake (front and rear) versions. Tubeless compatible. The 451 20inch rim features a wide tire platfrom (with inner width of 23mm) to offer you premium traction in cornering and racing on wet tracks. With a layup optimization, the rim features optiomal strength-to-weight ratio. The 270g rim has passed our 80J in-house impact test (without tire). Available in 28H and 36H online. If you want to customize the hole count or build them with customized hubs, feel free to contact us. We'll personalize the layup design and hole drilling for you.
WARRANTY
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
WHAT IS IN THE BOX
Hyper Moto is available in both rim brake (for rear V-brake bike) and disc-brake (front and rear) versions. Tubeless compatible. The 451 20inch rim features a wide tire platfrom (with inner width of 23mm) to offer you premium traction in cornering and racing on wet tracks. With a layup optimization, the rim features optiomal strength-to-weight ratio. The 270g rim has passed our 80J in-house impact test (without tire). Available in 28H and 36H online. If you want to customize the hole count or build them with customized hubs, feel free to contact us. We'll personalize the layup design and hole drilling for you.
Rims
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)
- Rim Model: Hyper Moto
- Material: Toray T700 & T800 Premium Carbon Fiber
- Size: 20" (ETRTO 451mm)
- Intended Use: BMX Racing
- Bead Type: Hook
- Tubeless Capable: Yes
- Inner/Outer Width: 23mm/28.6mm
- Depth: 30mm
- BSD: 451mm
- ERD: 408.5mm (not including nipple head dimention)
- Rim Weight: 270+/-15g (disc), 285g+/-15g (non-disc)
- Profile: Symmetric (0mm)
- Max Cyclist Weight (on flat ground): 55kg/121lbs
- Spoke Tension: 120~130kgf front disc side and rear drive side
- Max Tire Pressure: 110psi/ 7.58 bar
- Recommended Tire Width: 20×1-3/8"
Full Custom
Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.
- Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
- Finish: Matte, Glossy, Satin, Colored Paint
- Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
- Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
- Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.
Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.
-
Overview
Hyper Moto is available in both rim brake (for rear V-brake bike) and disc-brake (front and rear) versions. Tubeless compatible. The 451 20inch rim features a wide tire platfrom (with inner width of 23mm) to offer you premium traction in cornering and racing on wet tracks. With a layup optimization, the rim features optiomal strength-to-weight ratio. The 270g rim has passed our 80J in-house impact test (without tire). Available in 28H and 36H online. If you want to customize the hole count or build them with customized hubs, feel free to contact us. We'll personalize the layup design and hole drilling for you.
-
Specs
Rims
- Rim Model: Hyper Moto
- Material: Toray T700 & T800 Premium Carbon Fiber
- Size: 20" (ETRTO 451mm)
- Intended Use: BMX Racing
- Bead Type: Hook
- Tubeless Capable: Yes
- Inner/Outer Width: 23mm/28.6mm
- Depth: 30mm
- BSD: 451mm
- ERD: 408.5mm (not including nipple head dimention)
- Rim Weight: 270+/-15g (disc), 285g+/-15g (non-disc)
- Profile: Symmetric (0mm)
- Max Cyclist Weight (on flat ground): 55kg/121lbs
- Spoke Tension: 120~130kgf front disc side and rear drive side
- Max Tire Pressure: 110psi/ 7.58 bar
- Recommended Tire Width: 20×1-3/8"
Full Custom
Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.
- Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
- Finish: Matte, Glossy, Satin, Colored Paint
- Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
- Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
- Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+
-
Warranty
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
-
In The Box
Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.
Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.
