Build Your Falcon RIM R45T disc
All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.
Global Shop
NA Shop
EU Shop
AU Shop
Ships worldwide. See what's on sale>>
Drain Hole This is a required option.
With Drain Holes
Center Channel Hole This is a required option.
No Access Holes
Version This is a required option.
Front Flyweight / Rear Standard
Weave This is a required option.
The elegant hand-twisted weave, Braided UD, continues to gain traction among our riders.
The braided pattern requires a more sophisticated and time-consuming carbon layup, compared to traditional UD (Uni-Directional) and 3K weaves.
Get a wheelset that sets your bike apart from others' now.
Braided UD
DEFAULT SETTINGS
RIMS
Matte, UD, hook, blank (no decal), 24h
Paintless, UD, blank (no decal), 28h, with access holes
Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes
HUBS
DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t
12/100mm (F) & 12/142mm (R)
DT Swiss 350 Straightpull Centerlock Sram XD 18t
15/110mm (F) & 12/148mm (R) boost
DT Swiss 350 straightpull centerlock Shimano Road 11s 36t
12*100mm (F) & 12*142mm (R)
SPOKES & NIPPLES
Sapim CX Sprint-rear drive side / CX Ray-other sides
Sapim aluminum black external
Sapim CX Ray & Sapim aluminum black external
Sapim CX Sprint-rear drive side / CX Ray-other sides
Sapim aluminum black external
ACCESSORIES
2 valves & 1 spare 18t ratchet
2 valves & 2 adapters (centerlock to 6-bolt)
2 valves & 1 spare 18t ratchet
Note: the wheelset price includes the warehouse transfer cost ($80).
Piece Weight: g+/-
Subtotal: USD +
Lead time: typically ships in 2 days
ADD TO CART
You
missed some options.
Added to cart! View cart
This item has gone out of stock. The new inventory is still in transit, and we’ll update this page asap when the wheelsets are available. More info about our European warehouse.
You can order it from our Global Warehouse or have a look at other products.
If you have any questions or want faster shipping, please email us (sales@lightbicycle.com) or leave a comment.
We do not stock this item at the European warehouse. See what we stock currently.
You can order this product from our Global or North American warehouse.
Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.
Center Channel Hole This is a required option.
No Access Holes
DEFAULT SETTINGS
RIMS
Matte, UD, hook, blank (no decal), 24h, with drain holes
Paintless, UD, blank (no decal), 28h, with access holes
HUBS
DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t
12*100mm (F) & 12*142mm (R)
DT Swiss 350 Straightpull Centerlock Sram XD 18t
15/110mm (F) & 12/148mm (R) boost
SPOKES & NIPPLES
Sapim CX Sprint-rear drive side / CX Ray-other sides
Sapim aluminum black external
Sapim CX Ray & Sapim aluminum black external
ACCESSORIES
2 valves & 1 spare 18T ratchet
2 valves & 2 adapters (centerlock to 6-bolt)
Note: the wheelset price includes the warehouse transfer cost ($80).
Piece Weight: g+/-
Subtotal: USD + (discount price)
Lead time: typically ships in 3 business days
ADD TO CART
You
missed some options.
Added to cart! View cart
This item has gone out of stock currently.
More products are in transit and we will update the availability soon.
Leave a comment or email us (sales@lightbicycle.com) if you want to get notified when available.
You can also order this product from other shops.
We do not stock this item at the Australian shop. See what's available.
You can order this product from our Global / NA shops.
Please fill out this form if you are looking for a custom wheelset.
We'll get back to you soon to study the customization requests via email.
Our apologies, we do not offer this item at the Global warehouse.
Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.
Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.
Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.
- 1
RIM
- 2
ACCESSORIES/OTHERS
- 3
OVERVIEW
RIM
Shopping Style
|
Options
Features |
Quick Buy | Full Custom |
|---|---|---|
| Inventory | Parts in stock (Assembled upon order) |
Manufactured upon order |
| Customization | Least customizable | 100% Customizable |
| Lead Time | ≤ 3 days | 4 weeks typically |
| Availability | Limited models | All models |
| Shipping | Worldwide | Worldwide |
Quick Buy (In Stock)
Full Custom (Made to Order)
DEFAULT SETTINGS
Rims
Hook, matte, UD, with drain holes
Hook, matte, UD, with access holes, with drain holes
Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes
Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes
Paintless, UD, 5-year warranty, no drain holes
Grooved graphene surface, hook, matte, UD, with access holes, with drain holes
Grooved graphene surface, hook, matte, UD, no access holes, with drain holes
Matte UD, 32H, Centered (Staggered)
Hubs
Hope Pro 4 Fatsno J-bend 6-bolt
15/150mm (F) & 12/197mm (R) Sram XD
Straightpull centerlock black 24H
12/100mm & 12/142mm
Shimano Road 11S
DT Swiss straightpull / Bitex j-bend, centerlock, 28H
J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H
15/110mm boost & 12/148mm boost Sram XD
DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear
100mm QR & 130mm QR Shimano Road 11S
Spokes
Sapim CX Ray black
Sapim D-Light
Accessories
No decals/valves/tape
No decals/valves/tape/pads
No decals/valves
Piece Weight: g+/-
Subtotal: USD +
Lead time:
ADD TO CART
You
missed some options.
You
missed some options.
Added to cart! View cart
Bead type This is a required option.
Tubular
Brake System This is a required option.
Disc
Hole Count This is a required option.
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.
Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
24H
28H
32H
Full Custom
Finish This is a required option.
Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.
Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
Glossy
Matte
Full Custom
Weave This is a required option.
The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.
The rim strength & weight is virtually identical.
Matte UD is the most popular and has a subtle look.
The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>
Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.
UD
3K
12K
Hexa-Comb USD +15
Full Custom USD +15

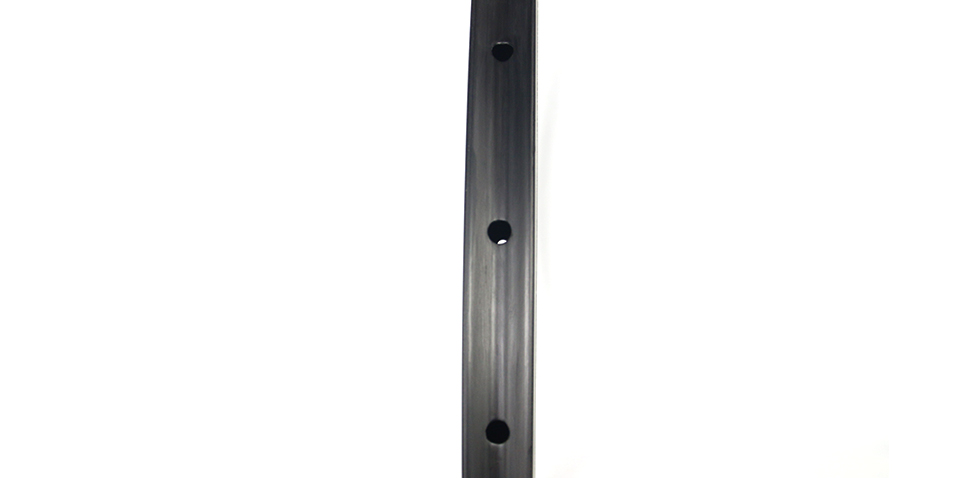

Center Channel Hole This is a required option.
With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.
No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.
Currently, rims with 'No Access Holes' do not work with our carbon spokes.
With Access Holes
No Access Holes
Drain Hole This is a required option.
The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.
It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.
Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>
With Drain Holes
No Drain Holes
Decal This is a required option.
Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.
Pictures about light-bicycle decal >>
If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.
Blank (No decal)
Stealth (Grey)
Blue
Green
Magenta
Orange
Red
White
Yellow
Recon Pro orders start shipping in October.
-
+
PCS
Piece Weight: 410.00g+/-15
Subtotal: USD 148+
PREVIOUS
NEXT
You
missed some options.
You
missed some options.
Added to cart!
View cart or continue
shopping.

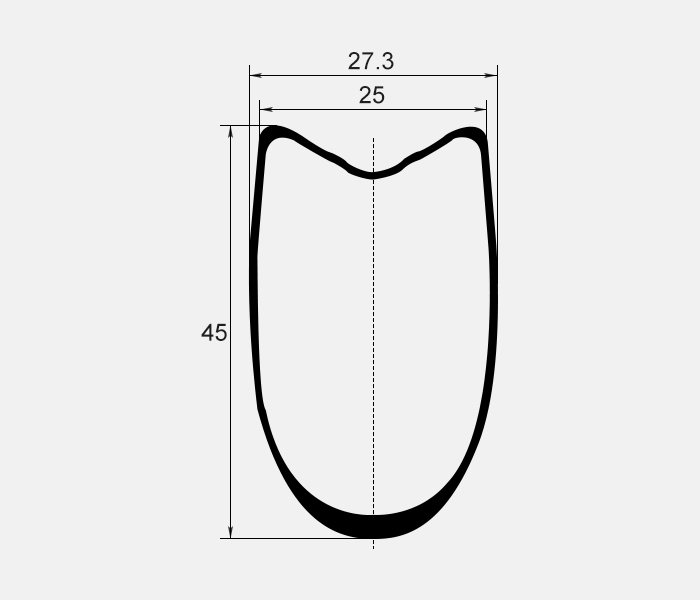

RIM SPECS
- Rim Model R45T disc
- Material Toray T700 & T800 Premium Carbon Fiber
- Size 29”/700C (ETRTO 622mm)
- Series FALCON
- Intended Use Road/CX
- Bead Type Tubular
- Outer Width 25mm
- Depth 45mm
- ERD 550mm (not including nipple head dimension)
- Rim Weight 410+/-15g
- Profile Symmetric (0mm)
- Max Cyclist Weight (on flat ground) 120kg/ 265lbs
- Spoke Hole Angle ±6°
- Spoke Tension 120~135kgf front disc side and rear drive side
- Recommended Tire Width 21C-38C
TECH
With a 45mm depth, this rim offers all the aerodynamic benefits of a much deeper profile in a lighter package that’s easier to control in crosswinds. If there’s climbing to do, these could be your best choice.
WARRANTY
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
WHAT IS IN THE BOX
With a 45mm depth, this rim offers all the aerodynamic benefits of a much deeper profile in a lighter package that’s easier to control in crosswinds. If there’s climbing to do, these could be your best choice.
Rims
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)
- Rim Model: R45T disc
- Material: Toray T700 & T800 Premium Carbon Fiber
- Size: 29”/700C (ETRTO 622mm)
- Series: FALCON
- Intended Use: Road/CX
- Bead Type: Tubular
- Outer Width: 25mm
- Depth: 45mm
- ERD: 550mm (not including nipple head dimension)
- Rim Weight: 410+/-15g
- Profile: Symmetric (0mm)
- Max Cyclist Weight (on flat ground): 120kg/ 265lbs
- Spoke Hole Angle: ±6°
- Spoke Tension: 120~135kgf front disc side and rear drive side
- Recommended Tire Width: 21C-38C
Full Custom
Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.
- Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
- Finish: Matte, Glossy, Satin, Colored Paint
- Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
- Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
- Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.
Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.
-
Overview
With a 45mm depth, this rim offers all the aerodynamic benefits of a much deeper profile in a lighter package that’s easier to control in crosswinds. If there’s climbing to do, these could be your best choice.
-
Specs
Rims
- Rim Model: R45T disc
- Material: Toray T700 & T800 Premium Carbon Fiber
- Size: 29”/700C (ETRTO 622mm)
- Series: FALCON
- Intended Use: Road/CX
- Bead Type: Tubular
- Outer Width: 25mm
- Depth: 45mm
- ERD: 550mm (not including nipple head dimension)
- Rim Weight: 410+/-15g
- Profile: Symmetric (0mm)
- Max Cyclist Weight (on flat ground): 120kg/ 265lbs
- Spoke Hole Angle: ±6°
- Spoke Tension: 120~135kgf front disc side and rear drive side
- Recommended Tire Width: 21C-38C
Full Custom
Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.
- Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
- Finish: Matte, Glossy, Satin, Colored Paint
- Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
- Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
- Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+
-
Warranty
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
-
In The Box
Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.
Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.
Gallery
Get in touch
Feel free to leave a comment if you have any questions or suggestions on our products or other issues.
Please leave your name here.
E-mail is required for further contact.
Please enter a message.
