carbon 88mm wheel road bike 700c clincher

Interested in WHEELSET WR88C02 road bike wheel Contact Us!

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Recon Pro orders start shipping in October.

- + Pair

Piece Weight: 0.00g+/-3%

Subtotal: USD 0+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Use road bike wheel
Size 700C
Material full carbon Toray T700
Type clincher
Weight 1770g+/-10
Tubeless ready
Spoke Hole 20H/24H
Internal hole customized
Hub(recommend) DT Swiss 240S hubs
Spoke Sapim CX-RAY
Nipples Sapim Polyax secure lock
Inner width 15.4mm
Outer width 23mm
Depth 88mm
Max weight limit 130kg
Max tyre pressure 160psi
Finish matte/glossy
Decal customized
Weave UD/3K/12K
Warranty 15 Months
Standard En Standard

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Use: road bike wheel
Size: 700C
Material: full carbon Toray T700
Type: clincher
Weight: 1770g+/-10
Tubeless: ready
Spoke Hole: 20H/24H
Internal hole: customized
Hub(recommend): DT Swiss 240S hubs
Spoke: Sapim CX-RAY
Nipples: Sapim Polyax secure lock
Inner width: 15.4mm
Outer width: 23mm
Depth: 88mm
Max weight limit: 130kg
Max tyre pressure: 160psi
Finish: matte/glossy
Decal: customized
Weave: UD/3K/12K
Warranty: 15 Months
Standard: En Standard

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model:

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes:
Nipples:

Overview

Please contact us if you need other hubs, spokes and graphic design for products.We can make according to customers requirement.
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Use: road bike wheel

Size: 700C

Material: full carbon Toray T700

Type: clincher

Weight: 1770g+/-10

Tubeless: ready

Spoke Hole: 20H/24H

Internal hole: customized

Hub(recommend): DT Swiss 240S hubs

Spoke: Sapim CX-RAY

Nipples: Sapim Polyax secure lock

Inner width: 15.4mm

Outer width: 23mm

Depth: 88mm

Max weight limit: 130kg

Max tyre pressure: 160psi

Finish: matte/glossy

Decal: customized

Weave: UD/3K/12K

Warranty: 15 Months

Standard: En Standard

Read more for actual road tire width

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model:

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes:

Nipples:
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

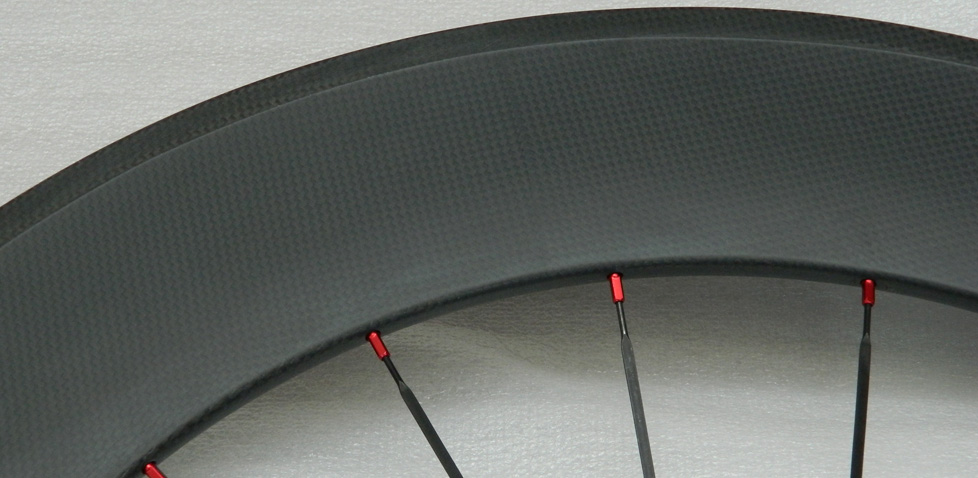

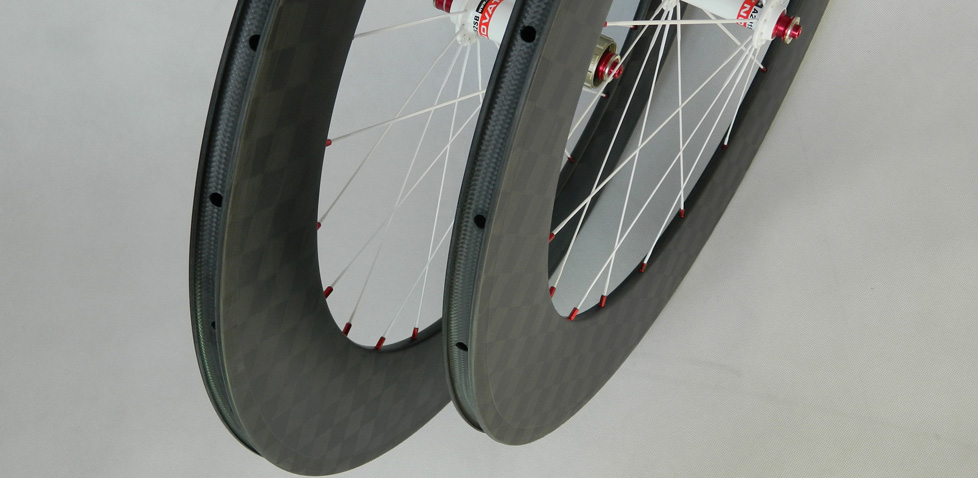

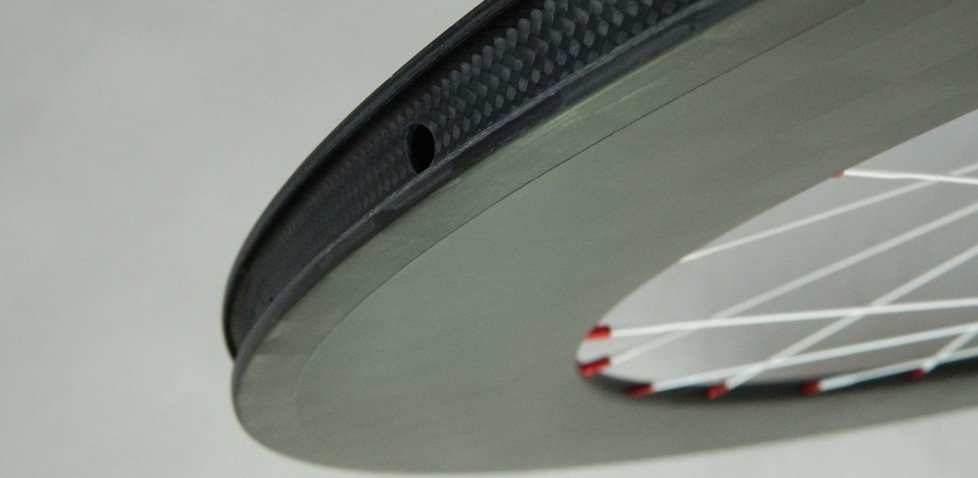

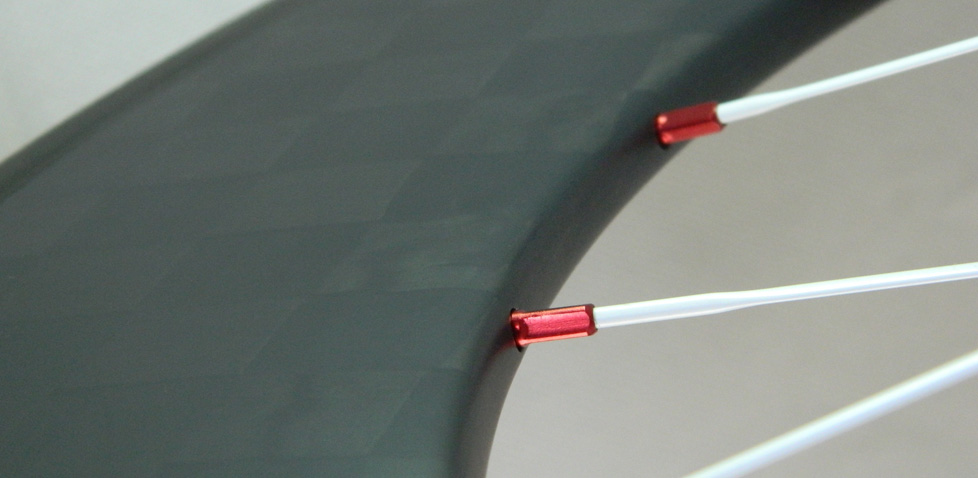

Gallery

Be the first to review this product and help riders of your style choose the most suited.

Write a review now >>

If you've got a longer story to tell and a few pictures won't cut it, check out our storytelling feature and consider sharing your story!

COMMENTS

Ron 2018/09/10

I’m looking for a front tubeless clincher wheel that is 25mm wide. Can you provide a quote? Thanks

LightBicycle 2018/09/11

Hi Ron, Are you looking for a 25mm wide, 88mm deep rim? If so, you can see the rim profile from the attachment. Then we can get the front road clincher wheel price accordingly for your check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Innocenzo 2018/07/19

Buongiorno , vorrei comprare un set di ruote in carbonio . Posteriore da 88 mm e anteriore da 60 circa per ruote con freni a disco per copertoncino. Mozzi DT Swiss TOP, raggi Sapim raggi raggi CX e capezzoli rossi per 11s shimano? Grazie

LightBicycle 2018/07/20

Hi Innocenzo, We sent an quotation for this 700C 23mm wide road wheelset clincher to your email address. Have you got it? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Andrew 2018/07/15

How much would it cost for just one 700c 88mm deep 23mm wide rim, no hub or anything? No braking surface machining either.

LightBicycle 2018/07/16

Hi Andrew, For 23mm wide 88mm deep clincher rim, do you like the rim to be with non disc or disc? If it is disc, it is without brake track surface for braking. If it is non-disc, there will be brake track surface for braking. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

lucas 2018/07/08

Hello, I would like to have a 88m deep but I'm not seeing a option for 25 tires? do you have it? 88m ready for 25 tires clincher?

LightBicycle 2018/07/09

Hi Lucas, We do have another wider 88mm deep road wheels for 25mm tires. Please find attached rim profile in your email. Is it what you like? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

James 2017/07/13

Hi Light Bicycle, Do you have the 88mm as a 25mm wide wheel? Thank you.

LightBicycle 2017/07/13

Hi Jame, Thanks for your inquiry! We have 24.73mm wide/88mm deep U-shaped clincher wheel. Please find attached rim tech drawings for your check. Is it okay for you? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Botak 2016/11/29

Hi, can i check price for 88mm carbon clincher rear wheel only with DT Swiss 350 hub, sapim cx ray spokes and black alu nipples for 11s shimano? thanks

LightBicycle 2016/11/30

Hello Botak, Thanks for your inquiry. Currently, we have new U shape 88mm depth rim. It is much wider and stronger. Also, the rim is with special material and New high TG resin, it will provide better braking surface performance than basalt braking surface. Rim profile attached for your reference. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

zhiyu 2016/01/21

how much is it for this rear wheel with a track hub

Light-Bicycle 2016/01/22

Hello Mr Goh, Thanks for your inquiry. The 88mm real wheel with following specs is $318/pcs. -Rim: RR88C02 clincher, 640 /-15g, 24H. Rim weave in 3k matte is more popular. Which do you prefer? -Hub: Novatec A566SBT. Picture attached for reference. -Spokes: Black, Pillar x-tra 1420 aero -Nipples: Alloy or brass? Silver or black? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

shahrokh 2016/01/11

hi, can i order a rear wheel of carbon 88mm road bike 700c clincher? and what is the price of this rear wheel for campagnolo 11speed?

Light-Bicycle 2016/01/18

Hello Shahrokh, Thanks for your inquiry. Sure. The 88mm clincher rear wheel with following specs is USD318/pcs. The shipping cost is USD128 by DHL. -Rim: RR88C02, 640 /-15g. 3k/12k/UD are the 3 choices for cosmetic appearance. The rim strength & weight is virtually identical. 3k matte is more popular. Below is a link for reference. http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ -Hub: Black, Novatec F482 for Campy 11s -Spokes: Black, Pillar x-tra 1420 aero -Nipples: Alloy or brass? Silver or black? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Carolina 2015/03/03

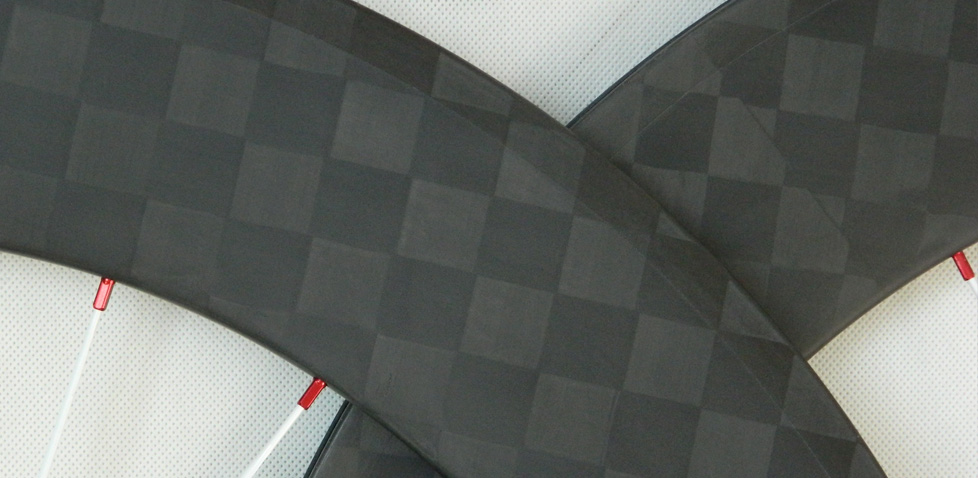

Hello, I really like the large square carbon on this RIM, which type of weave it is? what is the difference with other small weave? Is the price the same? Thank you, Pierre

Light-Bicycle 2015/03/04

Hello Pierre, Thanks for your inquiry. If you like large square carbon fiber, you can choose 12k. Do you prefer 12k matte or 12k glossy? Please find below link. http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ For 3k/12k/UD, it is the outer carbon fiber layer to make the carbon fiber with different outlook, and all the inside carbon fiber are the same. So, the rim strength & weight is almost the same. 3k matte &UD matte are more popular. All the price are the same with different rim weave. RR88C02 (23mm wide 88mm clincher rim): 650 /-15g, USD195/pcs Please find attached rim cross-section drawing. For spoke count, is it front 20H/ rear 24H? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Bruce 2014/08/22

Hi there I was looking at either a set of RR88C01 or WR88C01 for my TT bike, is there any specific type of fibre eg 3K,12K,UD you would recommend? Also I may be looking at putting custom graphics on these. What is the specifics you need for this type of rim for the graphics and what is the extra weight difference approximately. Thanks

Light-Bicycle 2014/08/25

Hello Bruce, Thanks for your inquiry. Currently, the 20.8mm outer width 88mm width rim(RR88C01) is not available, but there is 23mm outer width rim(RR88C02). The 23mm rim is much stronger and their weights are almost the same. You can take it into your consideration. Please find the attached cross-section drawing of the 23mm wide 88mm depth clincher rim. Is it OK for you? For 3k/12k/UD, it is the outer carbon fiber layer to make the carbon fiber with different outlook. It is only the outer layer different and all the inside carbon fiber are the same. So, the strength & weights are almost the same. I recommend you the 3K weave for 88mm rim. You can let us know what kind of graphic you'd like for rims. Then we can make graphic file for your reference. And it will need extra cost for custom graphic. The weight is 650 /-15g for a single 88mm rim(RR88C02) with basalt brake surface. The weights are almost the same with and without decal. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Lee 2014/07/24

Are these compatible with Shimano 10 speed?

Light-Bicycle 2014/07/25

Hello Lee, Thanks for your inquiry. Currently, the 20.8mm outer width 88mm depth clincher rim is not available, but there is 23mm outer width rim. The 23mm rim is much stronger and their weights are almost the same. You can take it into your consideration. Please find the attached cross-section drawing of the 23mm wide 88mm depth clincher rim. https://www.lightbicycle.com/wider-carbon-rims-clincher-for-700C-bike-88mm-bike.html#.U9HUVPmSyWw For the rims, do you prefer UD, 3k or 12k? Matte or glossy? Front 20H/rear 24H? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ There are Novatec A291/F482 QR(320g/pair) and Novatec A171/F172 QR(385g/pair) for Shimano 8/9/10s. Which one do you prefer? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Owen 2014/04/14

Does the Novatec A291SB work with shimano 11 speed?

Light-Bicycle 2014/04/17

Hello Owen, . Thanks for your inquiry. Currently, we have 2 types 88mm clincher rims of 20.8mm outer width and 23mm outer width. The 23mm rim is much stronger and their weights are almost the same. You can take it into your consideration. Please find the attached cross-section drawings & some pictures. For the rims, do you prefer UD, 3k or 12k? Matte or glossy? Front 20H/rear 24H? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ The Novatec A291 is front hub and the Novatec F482 rear hub is for shimano 11 speed. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Paul 2013/09/18

Hi Do you have hubs compatible with shimano 11 speed? Are you able to do a 60mm front, 88mm rear clincher set Thanks Paul

Light-Bicycle 2013/09/22

Hello Paul, Currently, we have 2 types 60mm & 88mm clincher rims of 20.8mm outer width and 23mm outer width. The 23mm rim is much stronger and their weights are almost the same. You can take it into your consideration. Please find the attached cross-section drawings & some pictures. We can build the front 60mm & a rear 88mm clincher wheels for you. For the rims, do you prefer UD, 3k or 12k? Glossy or matte? Front 20H/ rear 24H? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ For the spokes, it’s black bladed Pillar Aero X-TRA 1420 (4.3g/pcs for 260mm) and black/red/blue/green/gold pillar alloy light nipples. Which color do you prefer? For the hubs, we have Novatec A291/F482(321g/pair) for Shimano 11 speed only. Is it OK for you? If you’d like to order, I can create invoice for you. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Donnie 2013/05/07

Can I get plain silver spokes instead of black on your 88mm clincher?

Light-Bicycle 2013/05/07

Hello Donnie, Currently, we only have bladed black pillar psr x-tra 1420 aero (4.3g/pcs for 260mm). Is it ok for you? For the 88mm clincher rims, we have two types of 20.8mm width and 23mm width. Do you like them ? Please find the cross-section drawings. If yes, we can build the 88mm clincher wheelset for you. For the rim, do you like UD, 3K or 12K? Matte or glossy? Front 20H/rear 24H? http://www.flickr.com/photos/light-bicycle/sets/72157631588239854/detail/ Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Didi 2013/04/24

is there a track pair available? if there's how much would they cost? thanks C:

Light-Bicycle 2013/04/25

Hello Didi, Sure, it is ok to build 88mm track wheelset. Please find below link, there are some picture for track wheels. http://www.flickr.com/photos/light-bicycle/sets/72157631588239854/detail/ And what hub color do you like? And do you like 3k/12k/UD/18k for rims? glossy finish or matte? front 20H/rear 24H? The price is USD580/pair, and the shipping cost for one wheelset to Mexico is USD158. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 20 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Interested in WHEELSET WR88C02 road bike wheel Contact Us!

Overview

Specs

Warranty

In The Box

Rims

Hubs

Other Parts

Overview

Specs

Rims

Hubs

Other Parts

Warranty

In The Box

Gallery
