Strong, stiff, light. Pick three.

Starting immediately, all of our new road disc rim feature a layup that drops between 25g and 30g from each rim without compromising stiffness or strength.

This means the disc wheels have more responsive handling, a lower rotating weight for faster accelerations, and a lighter overall weight to have you scaling the hills faster than ever before.

We've achieved this lighter weight by using a new fiber layup that removes unnecessary excess material on the disc rim to save weight without compromising the rims strength. This technology is available on both our 25mm (17.9mm internal) U-shape rims and our 28mm (21mm internal) wide disc brake specific road rims.

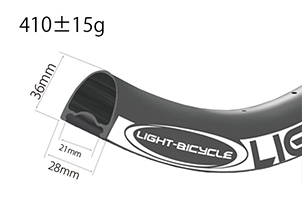

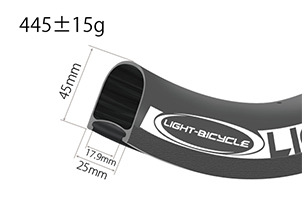

RRU35C02, RRU45C02, RR36C02 Disc Version: 30g lighter

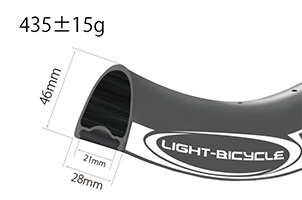

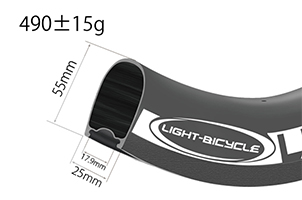

RRU55C02, RR46C02 Disc Version: 25g lighter

Ready to up your game? Click on the links below to head to each rims product page and buy yours now.

RRU35C02

$163

RRU45C02

$170

RRU55C02

$178

RR36C02

$178

RR46C02

$188

SHARE NOW:

February 13th, 2018 | Light Bicycle

COMMENTS

Ross 2019/11/26

I'm interested in your 25mm wide, 25mm deep rim brake rims. Are there likely to be any wider internal width rims in the same erd any time soon? Thanks.

LightBicycle 2019/11/28

Hi Ross, Do you mean you like to have an outer width 25mm 700C rim with a wider internal width? Currently, we only have the R25 (25mm wide, 25mm deep) available. Would you mind share your thought with us and let us know what' s the reason you like to have a wider internal rim with the 25mm end width? Are you considering using wide tires on the 25mm rim? Usually, with a wider internal, the outer width will be wider as well. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

james 2019/01/08

hello james hunt here im going to be building a wheelset in the spring im looking for 24 hole 46mm depth rims and 24 hole 56mm depth carbon rims whats the price per rim or do you sell them as a set of rims thanks

LightBicycle 2019/01/09

Hi James, It is okay to order front RR46C02/rear RR56C02 road bike disc rim. Do you like rims only or complete wheelset? Then we can work on invoice accordingly for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mobi 2018/07/10

can you laser brand on other logos?

LightBicycle 2018/07/10

Hi Mobi, Do you mean you want a customized decal? If so, we do provide customized service for our customers. What graphic design do you like? Then we can quote accordingly for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Eli 2018/04/25

So I take it these are the old rims but as they are disc specific you removed the material needed for the brake track? Take out the high melting point resin that is needed for rim braking? On general isn't high temp resin more brittle, tradeoff is worth it for rim brakes but not disc Any chance for wider u shaped rims? Maybe take advantage of the rim being disc only so the brake track area doesn't have to be parallel allowing for the widest part of the rim to be towards the hub to make it more toroid in shape and more aerodynamic if that part of the rim was wider then the tire.

LightBicycle 2018/04/26

Hi Eli, In fact, we do have a new gravel rim come up next month. It's with 56mm deep, 23mm inner/30mm outer width. Are you interested in this? Thanks, Lightbicycle

Raul 2018/05/15

I am. How much will it cost?

LightBicycle 2018/05/15

Hi Raul, Rim RR56C02, 30mm wide/56mm deep, hook, 470g+/-15（disc), 500g+/-15 (non-disc) is USD196 each. You can see the rim profile from the attachment. Or do you prefer building a wheelset with the rims? If so, please advise what kind of specs you want so I can quote accordingly. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ilya 2018/02/18

Hi, do you have plans to make a Flyweight version of any of these rims?

LightBicycle 2018/02/18

Hi Ilya, For road rims flyweight version, it will be available around the late 2018 year. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

denver 2018/02/16

Hi, Is it possible to get these new wheels in a fully built disc configuration? It seemed like it was not available under the carbon wheel builder tab. Thank you very much, Denver

LightBicycle 2018/02/16

Hi Denver, It is okay to build fully complete road disc wheelset for you. You can list your wheels specs here. Then we can quote accordingly for you. Or when you do the custom wheel builder, you can leave a message on the wheelset about new road disc light weight. Then we will know it. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 6 customer reviews>>
