Hubs We Build With - Road & MTB

Here is a list of hubs we stock and some more details to help you choose the best fit for your bike and riding style.

For ROAD hubs (Novatec A291SL/F482SL, Powerway R36, DT Swiss 350 and 240s), they are for Shimano 11s and will come with a spacer for Shimano 8/9/10 speed. Novatec A291/F582 are for Campagnolo 10/11 speed. Bitex RAF10/RAR9 Shimano freehubs are ok for 10/11s, and Campagnolo freehubs are also ok for 10/11s. The quick release is NOT included with DT hubs and Bitex hubs , but customers can order light Ti-quick release skewers separately from us.

For MTB hubs, we carry Novatec D771/ D772, Novatec D881/ D882, Pro 4 EVO 44T, DT Swiss 350, DT Swiss 240S, Chris King ISO and Project 321 (lefty only). They are all okay for Shimano MTB 10/11s, Shimano road 11s or SRAM XX1/XD. We have QR, 142x12, 148x12 (boost), 100x15, 110x15 (boost), and 110x20 in stock, other end caps are available aftermarket. The bike hub axle size for both front axle and rear axle hub are all listed as below, including weight of each hub.

Novatec - The least expensive and somewhat heavy option, but decent value to get you into a carbon wheelset without breaking the bank.

Bitex - Inexpensive hub with reliable bearings made in Taiwan, the road hubs are especially lightweight.

DT 350 - Reasonable price and solid performance. Not as much machining or as good of bearings as DT's 240s but they are quite reliable.

Hope Pro 4 - Our most popular option, reasonable weight and price, easy to work on and high availability of replacement parts, lots of colour choices.

DT 240 - Precision built hub with an incredibly strong yet super lightweight and easy to service design. Fast rolling high quality bearings.

Chris King - Patented ring drive system with 72 points of engagement, a plethora of colours and the best bearings in the industry. One of the most expensive but most reliable and highest quality hubs made.

Project 321 - Front hubs in Lefty and Lefty Supermax only. No expense spared front hubs for Cannondale Lefty hubs.

If the hub you like are not in the list, you can ship the hubs to our office. We can build the wheelset for you.

We will add more information once we have new bicycle hubs. Please check below list--
Novatec disc hubs
Hope disc hubs
DT Swiss disc hubs
Chris King disc hubs
Project 321 lefty hubs
non-disc hubs.

Notes:

1) Price: 1 Lowest, 5 Highest.

2) Freehub Weight Difference S =Shimano, X = SRAM XX1/XD

brand	hub model	Front or Rear	axle size	disc mount	spoke version	weight	spoke holes	performance (recommendatioin)	cost
Novatec	D771	F	standard QR	6-bolt	J-bend	159g	24, 28, 32	cyclo cross or XC	1
Novatec	D771	F	15mm	6-bolt	J-bend	141g	24, 28, 32	cyclo cross or XC	1
Novatec	D772	R	135mm standard QR	6-bolt	J-bend	S:273g, X:226g	24, 28, 32	cyclo cross or XC	1
Novatec	D772	R	12*142mm	6-bolt	J-bend	S:368g, X:263g	24, 28, 32	cyclo cross or XC	1
Novatec	D881	F	standard QR	6-bolt	J-bend	201g	32	AM or DH	1
Novatec	D881	F	9mm	6-bolt	J-bend	211g	32	AM or DH	1
Novatec	D881	F	15mm	6-bolt	J-bend	197g	32	AM or DH	1
Novatec	D881	F	20mm	6-bolt	J-bend	196g	32	AM or DH	1
Novatec	D882	R	10*135mm	6-bolt	J-bend	S:371g, X:356g	32	AM or DH	1
Novatec	D882	R	12*135mm	6-bolt	J-bend	S:348 g, X:333g	32	AM or DH	1
Novatec	D882	R	12*142mm	6-bolt	J-bend	S: 278g, X:263g	32	AM or DH	1

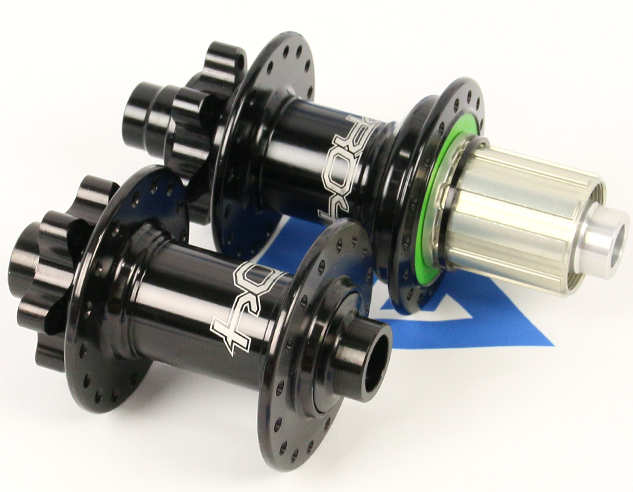

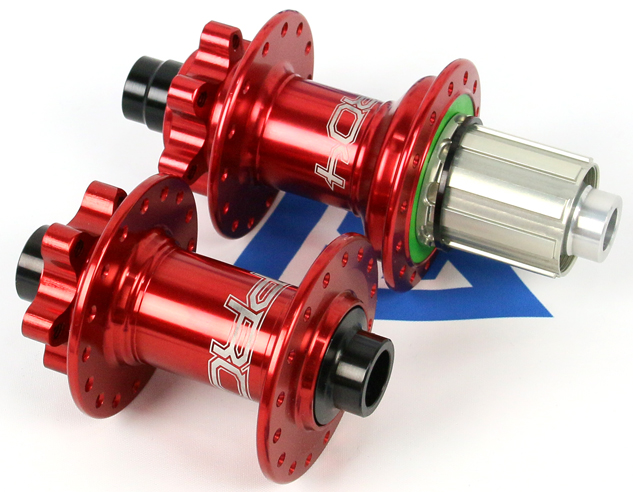

Hope	Pro 4 evo 44T	F	QR	6-bolt	J-bend	190g	28/32	XC, AM or DH	3
Hope	Pro 4 evo 44T	F	15mm	6-bolt	J-bend	183g	28/32	XC, AM or DH	3
Hope	Pro 4 evo 44T	F	15*110mm boost	6-bolt	J-bend	192g	32	XC, AM or DH	3
Hope	Pro 4 evo 44T	F	20mm	6-bolt	J-bend	176g	32	XC, AM or DH	3
Hope	Pro 4 evo 44T	R	135mm QR	6-bolt	J-bend	S:315g, X:305g	28/32	XC, AM or DH	3
Hope	Pro 4 evo 44T	R	10*135mm	6-bolt	J-bend	S: 311g, X:301g	28/32	XC, AM or DH	3
Hope	Pro 4 evo 44T	R	12*135mm	6-bolt	J-bend	S:310g, X:301g	28/32	XC, AM or DH	3
Hope	Pro 4 evo 44T	R	12*142mm	6-bolt	J-bend	S:310 g, X:299g	28/32	XC, AM or DH	3
Hope	Pro 4 evo 44T	R	12*148mm boost	6-bolt	J-bend	S: 312g, X:304g	32	XC, AM or DH	3
Hope	Pro 4 evo 44T	R	10*135mm	6-bolt	J-bend	465g	32	XC, AM or DH	3

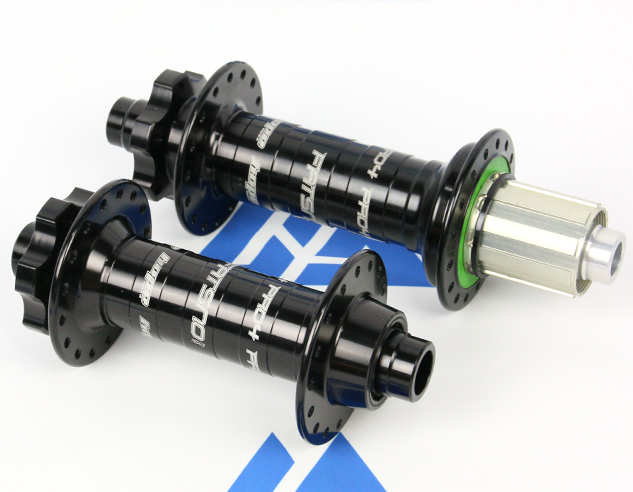

Hope	Fatsno fat bike pro 4	F	9*135mm QR	6-bolt	J-bend	255g	32	XC, AM or DH	3
Hope	Fatsno fat bike pro 4	F	15*135mm	6-bolt	J-bend	233g	32	XC, AM or DH	3
Hope	Fatsno fat bike pro 4	F	15*150mm	6-bolt	J-bend	249g	32	XC, AM or DH	3
Hope	Fatsno fat bike pro 4	R	9*170mm QR	6-bolt	J-bend	S:358g, X:351g	32	XC, AM or DH	3
Hope	Fatsno fat bike pro 4	R	9*190mm QR	6-bolt	J-bend	S:380g, X:374g	32	XC, AM or DH	3
Hope	Fatsno fat bike pro 4	R	12*170mm	6-bolt	J-bend	S:355g, X:346g	32	XC, AM or DH	3
Hope	Fatsno fat bike pro 4	R	12*177mm	6-bolt	J-bend	S:355g, X:346g	32	XC, AM or DH	3
Hope	Fatsno fat bike pro 4	R	12*190mm	6-bolt	J-bend	S:376g, X:369g	32	XC, AM or DH	3
Hope	Fatsno fat bike pro 4	R	12*197mm	6-bolt	J-bend	S:377g, X:369g	32	XC, AM or DH	3
DT Swiss	350	F	15mm	6-bolt	J-bend	172g	32	XC, AM or DH	2
DT Swiss	350	F	15mm	center lock	J-bend	136g	28	XC, AM or DH	2
DT Swiss	350	F	15*110mm boost	6-bolt	J-bend	182g	32	XC, AM or DH	2
DT Swiss	350	F	15*110mm boost	center lock	J-bend	142g	32	XC, AM or DH	2
DT Swiss	350	R	12*142mm	6-bolt	J-bend	S:300g, X:278g	32	XC, AM or DH	2
DT Swiss	350	R	12*142mm	center lock	J-bend	S:268g, X:245g	28	XC, AM or DH	2
DT Swiss	350	R	148*12mm boost	6-bolt	J-bend	S:305g, X:280g	32	XC, AM or DH	2
DT Swiss	350	R	148*12mm boost	center lock	J-bend	S:272g, X:249g	32	XC, AM or DH	2
DT Swiss	350 big ride	F	150*15	6-bolt	J-bend	216g	32	XC, AM or DH	2
DT Swiss	350 big ride	R	197*12	6-bolt	J-bend	X:328g	32	XC, AM or DH	2
DT Swiss	240	F	QR	center lock	J-bend	132g	24	XC, AM or DH	4
DT Swiss	240	F	15mm	6-bolt	straight pull	125g	28	XC, AM or DH	4
DT Swiss	240	F	15mm	6-bolt	J-bend	164g	32	XC, AM or DH	4
DT Swiss	240	F	15mm	center lock	J-bend	127g	24,28,32	XC, AM or DH	4
DT Swiss	240	F	15*110mm boost	6-bolt	J-bend	146g	32	XC, AM or DH	4
DT Swiss	240	R	135mm standard QR	center lock	J-bend	S:234g, X:224g	24	XC, AM or DH	4
DT Swiss	240	R	12*142mm	6-bolt	straight pull	S:233g, X:222g	28	XC, AM or DH	4
DT Swiss	240	R	12*142mm	6-bolt	J-bend	S:239g, X:229g	32	XC, AM or DH	4
DT Swiss	240	R	12*142mm	center lock	J-bend	S:231g, X:219g	24,28	XC, AM or DH	4
DT Swiss	240	R	148*12mm boost	6-bolt	J-bend	S:243g, X:231g	32	XC, AM or DH	4
Chris King	ISO SD	F	15mm	6-bolt	J-bend	193g	32	XC, AM or DH	5
Chris King	ISO	R	12*142mm	6-bolt	J-bend	S:326g, X:325g	32	XC, AM or DH	5
Project 321 lefty for cannondale	Lefty	F	front thru axle	6-bolt	J-bend	116g	32	XC, AM or DH	5
Project 321 lefty for cannondale	Lefty SuperMax	F	front thru axle	6-bolt	J-bend	115g	32	XC, AM or DH	5
NON DISC BRAKE HUBS
Novatec	A291SL/F482SL	F/R	QR	J-bend	--	288g	20/24	road or cyclo cross	1
Novatec	A291/F582	F/R	QR	J-bend	--	321g	20/24	road or cyclo cross	1
Powerway	R36	F/R	QR	straight pull	Ceramic Bearings	298g	20/24	road or cyclo cross	1
Bitex	RAF10/RAR9	F/R	QR	J-bend	--	263g	20/24	road or cyclo cross	1
Bitex	RAF10/RAR9	F/R	QR	J-bend	Ceramic Bearings	259g	20/24	road or cyclo cross	1
DT Swiss	350	F/R	QR	straight pull	--	373g	20/24	road or cyclo cross	2
DT Swiss	240S	F/R	QR	J-bend	--	320g	20/24	road or cyclo cross	4

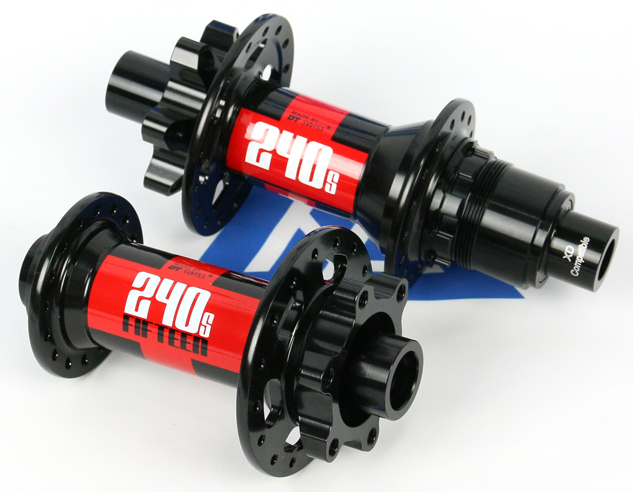

DT 240S, 6-bolt, J-bend, BOOST

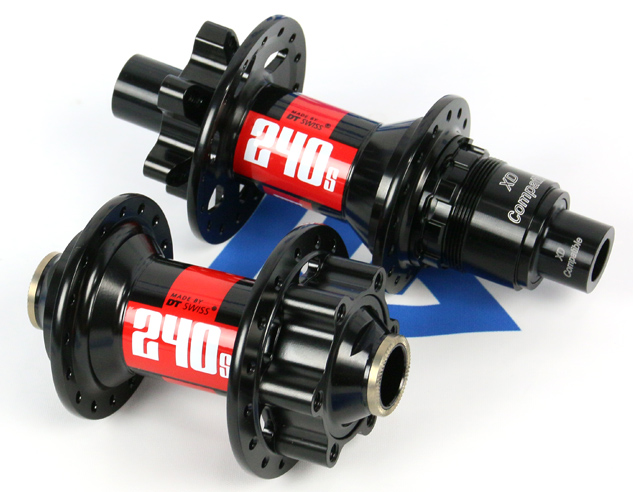

DT 240S, 6-bolt, J-bend

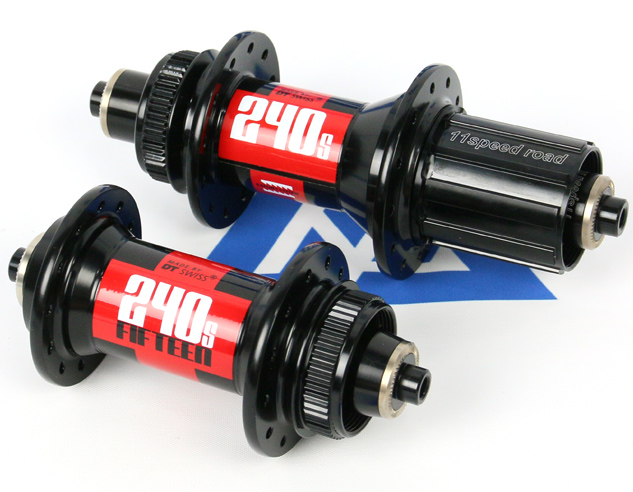

DT 240S, center lock, J-bend, QR

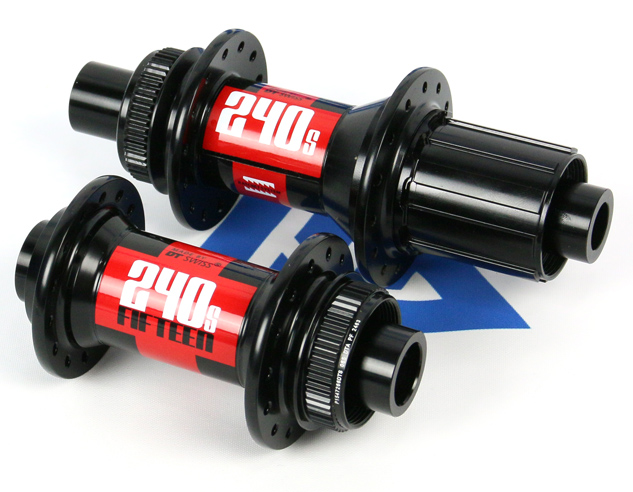

DT 240S, center lock, J-bend

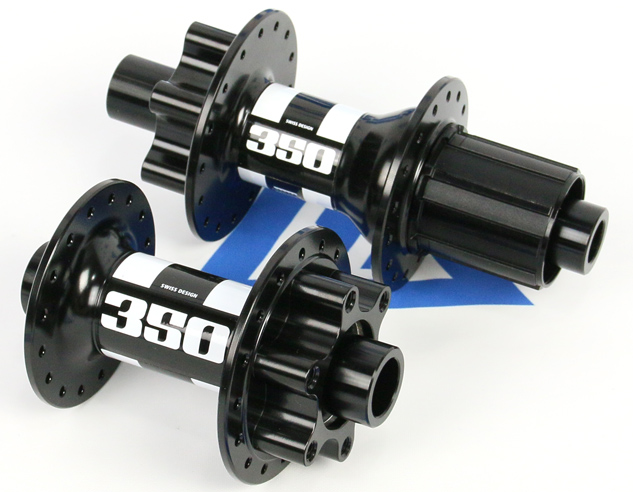

DT 350, 6-bolt,J-bend

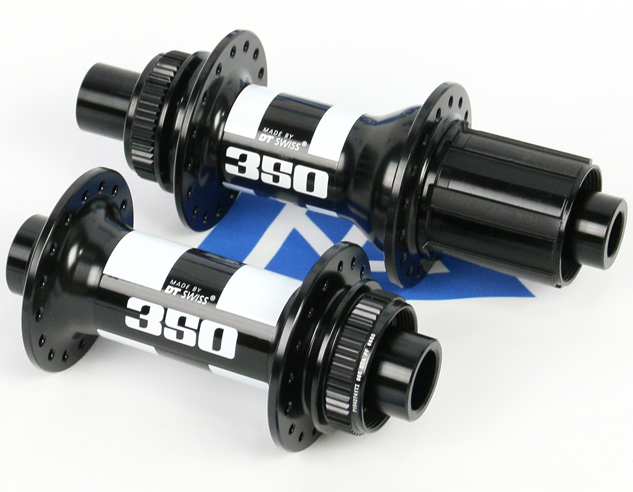

DT 350, center lock,J-bend, BOOST

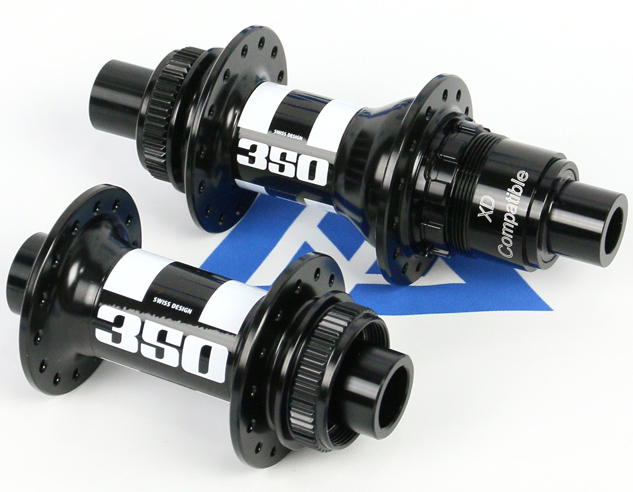

DT 350, center lock, J-bend

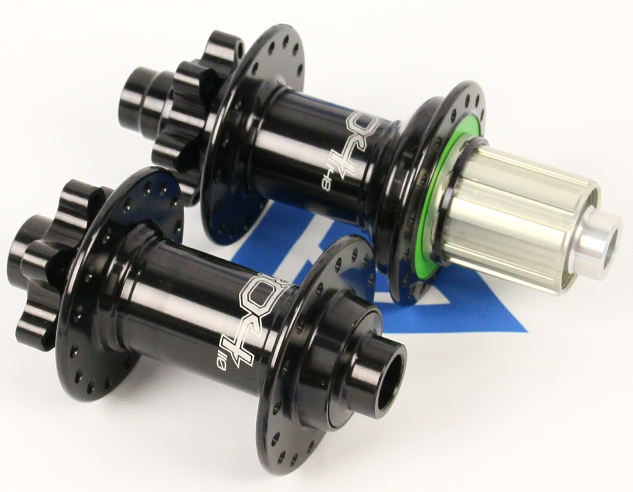

Hope pro 4 BOOST, black

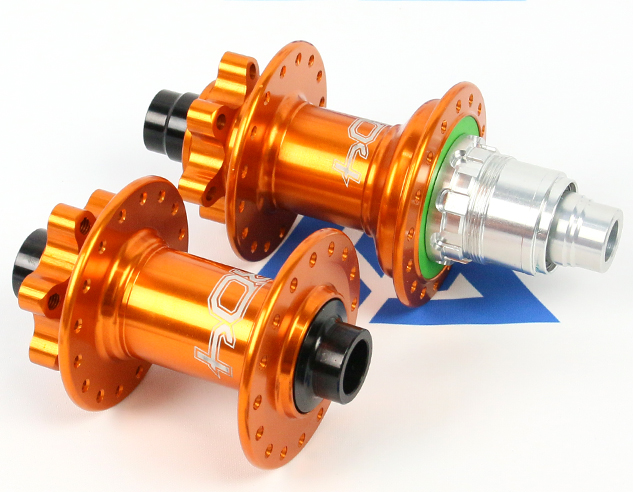

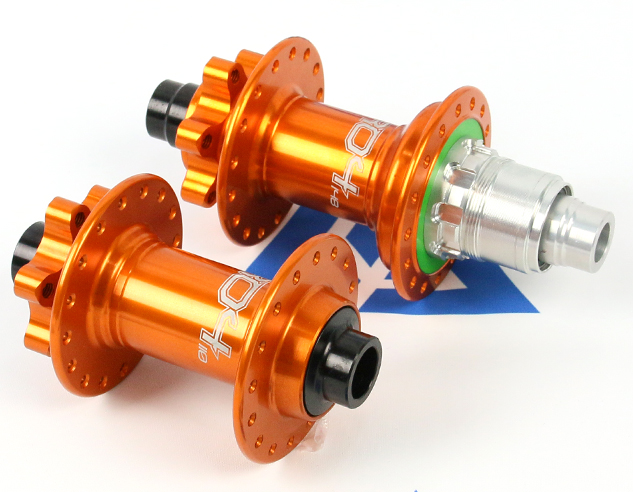

Hope pro 4 BOOST, orange

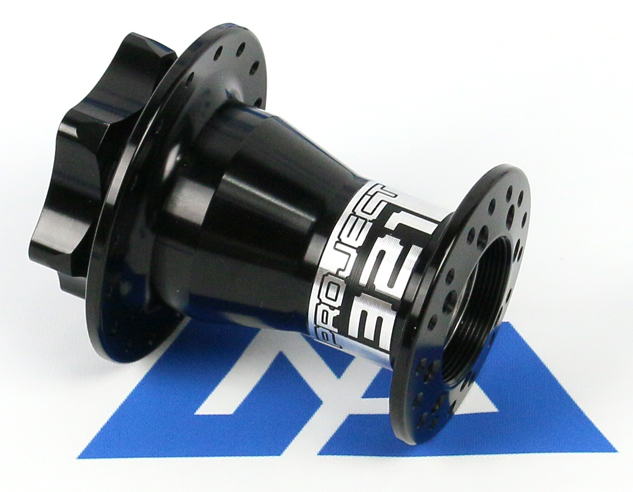

Project 321 lefty, SuperMax

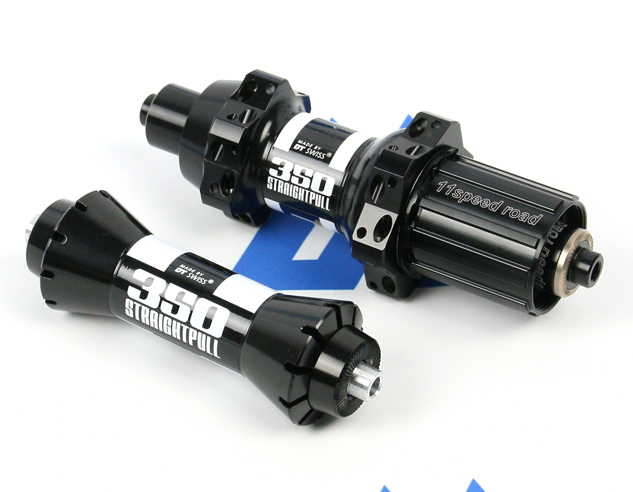

DT swiss 350, straight pull, non-disc

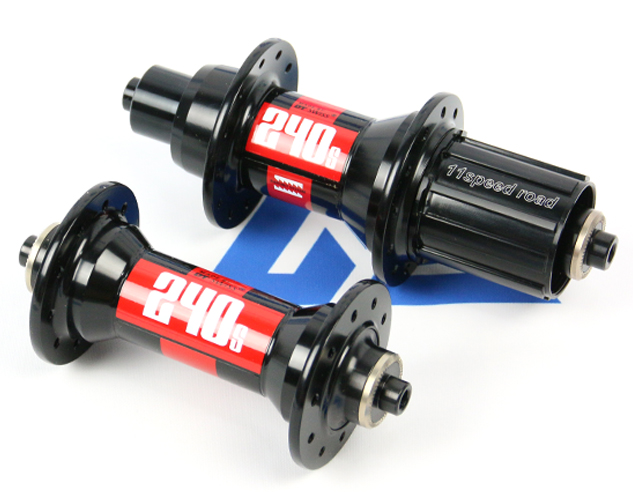

DT 240S, J-bend, non-disc

Bitex RAF10-RAR9, Ceramic Bearings

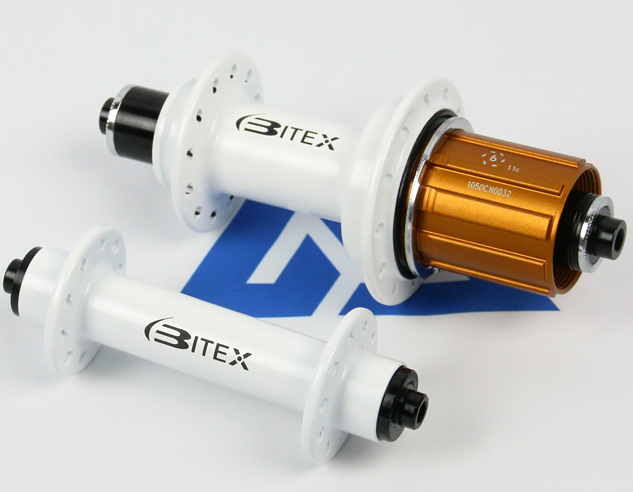

Bitex RAF10-RAR9, non-disc

SHARE NOW:

July 16th, 2015 | Light Bicycle

COMMENTS

David 2017/03/14

Hi, I noticed limited options in 26"now. I am riding 26" all mountain and weight about 200lb with gear on looking for a set with 30mm ish internal width. Build would be with cheapest option Novatech hubs 20mm front 135qr rear, brass nipples, shimano cassette compatible and the tubeless rim strips/valves included.

LightBicycle 2017/03/16

Hi David, We have black Novatec D881-20*110mm/ D882-135mm QR for you. But this hub is much heavier. Or you can try the Hope pro4 hubs which are lighter and with better quality Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Melvin 2016/04/07

Hi, I would like to enquiry possibility of building a pair of road clinchers with on DT240s straight pull spokes. Front 38 wide and rear 50 wide. Both to be 3k gloss. Shimano compatible hub. Pls advise price for this combination. Also what is the shipment cost to Melbourne, Australia. Thank you in advance.

Light-Bicycle 2016/04/08

Hi Melvin, There are 2 kinds of road rims here currently. One is V shape with 23mm outer width(old design) and the second one is U shape with 25mm outer width(new design). The U shape rim will be more durable and stronger than the V shape rim. 38mm depth and 50mm depth rims are V shape. I recommend you 35mm and 55mm depth U shape clincher rims. Is it OK for you? Please find the attached cross-section drawing of the rim. RRU35C02: $163/pcs, 435 /-15g RRU55C02: $178/pcs, 515 /-15g For the DT swiss 240s non-disc hubs, they are all J-bend. Is it OK for you? If you'd like straight pull version, it's only DT swiss 350 hub. Thanks, Lightbicycle

Darren 2016/04/15

Hi, I would like to purchase a set of XC carbon MTB wheels for my wifes Specialized Epic MTB bike. The front forks on this bike (Rock Shock Reba) use a 9mm thru quick release. The hub faces are 100mm, however the quick release is threaded and slides thru the hubs 9mm hole. Does Hope have end caps for this 9mm quick release? Thank you for your help.

Light-Bicycle 2016/04/18

Hi Darren, Thanks for your inquiry. For the XC MTB wheels, do you need 29er, 26er or 650b? For the "9mm thru quick release", do you mean 9mm thru axle or standard QR? Please find the attached pictures for your reference. May I know the axle size for rear? Then I can recommend you the hubs accordingly. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ben 2016/03/17

Hey guys, I would be interested in a set of your xc 29er 28H wheels with straight pull dt 350s and bladed spokes, I don't need them assembled, what would be a current price for these?

Light-Bicycle 2016/03/18

Hello Ben, Thanks for your inquiry. Currently, only DT 350 J-bend version is available. Does that work for you? If so, please find our quotations as below. -Rim (RM29C06 XC): $165/pcs -Hubs (DT 350 J-bend 6-bolt): $270 /pair -Spoke (Pillar x-tra 1420 aero): $1.67/pcs including nipple -Spoke (Sapim cx-ray aero): $2.7/pcs including nipple -Shipping with EMS: $58 All pricing in USD. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mark 2016/03/13

Hi, can you supply Hope pro2 evo straight pull as part of a custom build? Thanks Mark

Light-Bicycle 2016/03/14

Hello Mark, Thanks for your inquiry. Currently, we only have DT Swiss 350 and 240S strait pull hubs, no Hope straight pull hubs. Sorry about that. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Galen 2016/03/08

Can you get DT Swiss 240s straight-pull centerlock Boost hubs? If so what's the charge for them?

Light-Bicycle 2016/03/09

Hello Galen, Thanks for your inquiry. We only have DT Swiss 240S J-bend center lock boost hubs. Does that work for you? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

mike 2016/02/22

Hi- Do you not use DT 240 hubs anymore? thanks

Light-Bicycle 2016/02/23

Hello Mike, Thanks for your inquiry. Currently, the DT Swiss 240S road and MTB hubs are available. Do you like hubs only or wheels? Then we will quote accordingly. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Andrew 2015/12/09

Hello! I was just wondering if there was any chance you might someday offer your MTB wheelsets with Novatec D771SB/772SB or D771SB_CL/D772SB-CL hubs? These look like a great lightweight XC option! Thanks! Andrew

Light-Bicycle 2015/12/10

Hello Andrew, Happy to hear from you again. We can build our MTB XC wheels with Novatec D771/SB/ D772SB. The hub is for light riders and not for aggressively riding. We’d like to recommend Hope or DT Swiss 350S hubs which are with better quality. Light, strong, a very reliable hub make it for a long term options. Most our customers choose both one. Maybe you can have a try. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Federico 2015/11/25

Hi!! I have a Spec Enduro 29 2015 and want to change both wheels. I am interested in your 38 mm carbon wheels. What configuration (hubs, etc) do you recommend? Thanks!!

Light-Bicycle 2015/11/26

Hello Federico, Thanks for your inquiry. -Currently, Novatec/ Hope/ DT Swiss hubs are available. Hope and DT Swiss are with better quality, which are what we recommend. What hub axle size do you like for front & rear? Standard qr or thru axle? -For rims, it is hookless 38mm wide 29er rim (465 /-15g). Please find attached rim profile. Rim weave in 3k matte & UD matte are more popular. Which do you prefer? -We have black Pillar x-tra 1420 aero or DT competition spokes. DT competition spokes are much heavier, but stronger. Do you prefer alloy or brass nipples? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tom 2015/11/11

Do you offer any hubs with spacing 190 rear and 135 front? I want to put a 29 wheelset on my Specialized FatBoy. Your 38mm 29" rim looks like it would work nicely

Light-Bicycle 2015/11/12

Hello Tom, Thanks for your inquiry. Yes, we have Hope Fatsno hubs 190mm QR rear. Do you like front 135mm QR or 15*135mm thru axle? Regarding the FatBoy, it is with 80mm or 90mm width rims. We have new 50mm wide 29er plus rim. Would you like to have a try? It is much wider and comfortable. The 38mm width is narrower and only can work with 2.125’’ -2.75’’ tires. Please find attached rims profile. We have black Pillar x-tra 1420 aero or DT competition spokes. DT competition spokes are much heavier, but stronger. Do you prefer alloy or brass nipples? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Andrew 2015/11/03

Hello! I was just wondering whether you have any Center-Lock rotor compatible hubs? I was hoping to have a wheelset built for my 650B XC MTB with the RM650BC09 Rim and some kind of Center lock hubs! Thanks! Andrew

Light-Bicycle 2015/11/04

Hello Andrew, Thanks for your inquiry. Currently, we have DT Swiss 350 & 240 center lock hubs. Do you like J-bend or straight pull version? What hub axle size for front & rear? Stand qr or thru axle? For rims, it is hookless 27mm wide 650B XC rim (320 /-15g). Please find attached rim profile. Rim weave in 3k matte & UD matte are more popular. Do you like it? For spokes & nipples, it is black Pillar Aero X-TRA 1420 spoke & Pillar PT 734 nipple (black/blue/gold/green/red/silver). Thanks, Light-bicycle

Matt 2015/11/04

How can i place an order for the DT swiss 240 hubs on the CM29c14 rims?

Light-Bicycle 2015/11/05

Hello Matt, Thanks for your contact. You can email us your order info, then we can make the purchase link of 29C14 wheels with DT hubs. -For rims, it is hookless 38mm wide 29er rim (465 /-15g). Please find attached rim profile. Rim weave in 3k matte & UD matte are more popular. Do you like it? -For hubs, DT Swiss 240S hubs are available with J-bend & straight pull (6-bolt & center lock). Which do you prefer? -For spokes & nipples, it is black Pillar Aero X-TRA 1420 spoke & Pillar PT 734 nipple (black/blue/gold/green/red/silver). Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Jeppe 2015/10/31

Can you make the29" xc wheel for lefty?

Light-Bicycle 2015/11/02

Hello Jeppe, Thanks for your inquiry. Yes, we can build the 29er wheels for XC lefty. Do you need front wheel only or complete wheelset? Then we will quote accordingly. We have black Project 321 lefty hub (or Super max) & Circus monkey lefty hub for Cannondale. Most of our customers choose Project 321 lefty hub. And rear Novatec/ Hope/ DT Swiss 240S hubs are available. For rim, it is hookless 27mm wide 650B rim (360 /-15g). Please find attached rim profile. Rim weave in 3k matte & UD matte are more popular. Which do you prefer? For spokes & nipples, it is black Pillar Aero X-TRA 1420 spoke & Pillar PT 734 nipple (black/blue/gold/green/red/silver). Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Joe 2015/10/09

Hi, What's the lightest hub with ceramic bearings you build theses wheels with (for shim 11 speed), can you confirm the cost with these hubs? Not sure if the Bitex RAF10/RAR9 hubs come with ceramic bearing as standard, or if they are ok for 11 speed? Thanks. J

Light-Bicycle 2015/10/15

Hello Joe, Thanks for your inquiry. The Bitex RAF10/ RAR9 ceramic hub (258g/pair) is the lightest hub we have here.Is it ok for you? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Greg 2015/09/02

When will you have "Boost" sized hubs (15x110 Front, 12x148 Rear) available ? Hope brand is preferred, But maybe Novatec will suffice. Thanks.

Light-Bicycle 2015/09/10

Hello Greg, Thanks for your inquiry. Currently, we have new Hope pro2 evo boost hubs front 15*110mm/ rear 12*148mm, no Novatec boost hubs. Is that ok for you? Do you prefer 26er, 650B or 29er rims? Then we will quote accordingly. Do you ride XC, all mountain or down hill? For spokes & nipples, it is black Pillar Aero X-TRA 1420 spoke & Pillar PT 734 nipple (black/blue/gold/green/red/silver). Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Lloyd 2015/08/19

Can you tell me what the difference is in weight between the DH and AM options for your 27.5 / 38mm rims? I actually ride AM but I am a heavier rider (195 lbs). Do you recommend DH in my case?

Light-Bicycle 2015/08/21

Hello Lloyd, Thanks for your inquiry. Both AM & DH versions are stiff, but DH is stronger with extra carbon material. According to your details, we’d like to recommend the DH version. RM650BC13: Hookless 38mm wide 650B rim. Please find attached rim profile. AM: 450 /-15g, USD180/pcs DH: 500 /-15g, USD188/pcs Which do you prefer? Rim weave in 3k matte & UD matte are more popular. Do you like it? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Trevor 2015/08/11

Do you offer any hubs for with the new boost rear hubs with 148mm spacing? Will be looking for it to be laced on the 29" enduro rims. Thank you!

Light-Bicycle 2015/08/12

Hello Trevor, Thanks for your inquiry. Yes, we have Hope pro2 evo fatsno boost hub with 12*148mm. Is the front hub 15*110mm thru axle? For rims, we’d like to recommend hookless 38mm wide 29er AM rims. It is much wider and stronger. Please find rim profile. Rim weave in 3k matte & UD matte are more popular. Do you like it? For spokes & nipples, it is black Pillar Aero X-TRA 1420 spoke & Pillar PT 734 nipple (black/blue/gold/green/red/silver). Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
