Build Your Recon Pro RIM XC930

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

28H

32H

36H

Full Custom

Finish This is a required option.

Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Crystal Painting: A fantastic painting effect designed by Light Bicycle.

Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

Paintless

Glossy Crystal Painting (silver) USD +20

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Drain Hole This is a required option.

No Drain Holes

With Drain Holes

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

Decal This is a required option.

1. Grey Laser Engraving (Recon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.

2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.

Grey Laser Engraving (Recon Pro)

Blank (No decal)

Full Custom (Laser only) USD +5

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

xc930-29er-xc-cross-country-carbon-rim-270g-xc-marathon-bike-rim

Recon Pro orders start shipping in October.

- + PCS

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.

28H

32H

Finish This is a required option.

The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Paintless

Weave This is a required option.

Drain Hole This is a required option.

No Drain Holes

Rim Warranty This is a required option.

5 Years

Lifetime USD +100/rim

Decal This is a required option.

Grey Laser Engraving (Recon Pro)

Valve Stem This is a required option.

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.

Apply Tubeless Tape: The tubeless tape with high tensile strength is tightly installed on the wheel(s) at industrial-level for you to ride carefree tubeless at any conditions.

None

Add Tubeless Tape USD +8 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 270.00g+/-15

Subtotal: USD 289+

Piece Weight: 270.00g+/-15

Subtotal: USD 309+

PREVIOUS NEXT

RIM SPECS

Model XC930
Rim Introduction >>
Material Toray T700 & T800 Premium Carbon Fiber
Size 29"/29er (ETRTO 622mm)
Series RECON PRO
Intended Use Cross Country, XCO, XCM
Bead Type Hookless
Tubeless Capable Yes

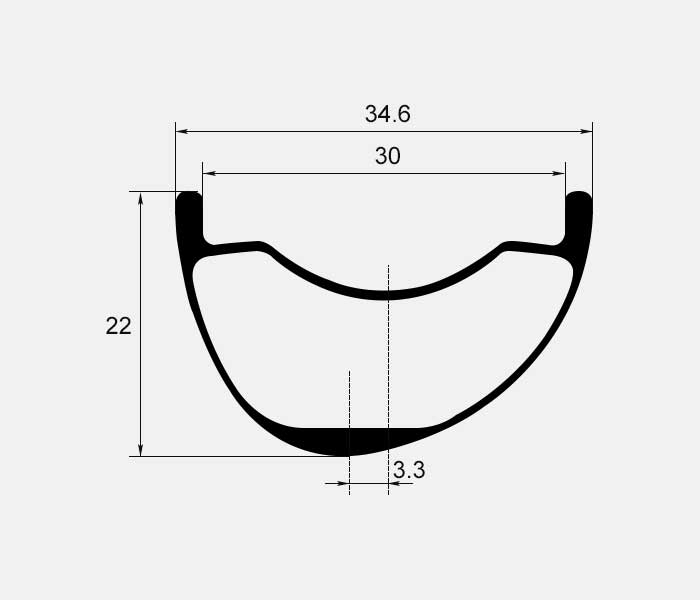

Inner/Outer Width 30mm/34.6mm
Depth 22mm
ERD 595.3mm (not including nipple head dimension)
Rim Weight 270+/-15g
Profile Asymmetric (3.3mm)
Max Cyclist Weight (on flat ground) 90kg/ 198lbs
Spoke Hole Angle ±7°
Spoke Tension 120~130kgf front disc side and rear drive side
Max Tire Pressure 35psi/ 2.77bar
Recommended Tire Width 2.35" ~ 2.4"

Race to the podium with this super-light 30i width rim. Weighing only 270g, but optimized for wider XC tires, you’ll float over the trails.

By optimizing the carbon layup, we shave vital grams on the XC rim and lower the weight down to 270g — a perfect balance of weight, strength, and performance. The rim features a 3.3mm offset to even the bracing angle of spokes on either side, creating an asymmetric wheel build that stays true longer. The XC rim is also designed with tubeless compatibility so that you can ride with or without tubes based on the specific riding condition.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Model: XC930
Rim Introduction >>
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29"/29er (ETRTO 622mm)
Series: RECON PRO
Intended Use: Cross Country, XCO, XCM
Bead Type: Hookless
Tubeless Capable: Yes
Inner/Outer Width: 30mm/34.6mm
Depth: 22mm
ERD: 595.3mm (not including nipple head dimension)
Rim Weight: 270+/-15g
Profile: Asymmetric (3.3mm)
Max Cyclist Weight (on flat ground): 90kg/ 198lbs
Spoke Hole Angle: ±7°
Spoke Tension: 120~130kgf front disc side and rear drive side
Max Tire Pressure: 35psi/ 2.77bar
Recommended Tire Width: 2.35" ~ 2.4"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Race to the podium with this super-light 30i width rim. Weighing only 270g, but optimized for wider XC tires, you’ll float over the trails.

By optimizing the carbon layup, we shave vital grams on the XC rim and lower the weight down to 270g — a perfect balance of weight, strength, and performance. The rim features a 3.3mm offset to even the bracing angle of spokes on either side, creating an asymmetric wheel build that stays true longer. The XC rim is also designed with tubeless compatibility so that you can ride with or without tubes based on the specific riding condition.
Specs
Rims

Model: XC930
Rim Introduction >>

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29"/29er (ETRTO 622mm)

Series: RECON PRO

Intended Use: Cross Country, XCO, XCM

Bead Type: Hookless

Tubeless Capable: Yes

Inner/Outer Width: 30mm/34.6mm

Depth: 22mm

ERD: 595.3mm (not including nipple head dimension)

Rim Weight: 270+/-15g

Profile: Asymmetric (3.3mm)

Max Cyclist Weight (on flat ground): 90kg/ 198lbs

Spoke Hole Angle: ±7°

Spoke Tension: 120~130kgf front disc side and rear drive side

Max Tire Pressure: 35psi/ 2.77bar

Recommended Tire Width: 2.35" ~ 2.4"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

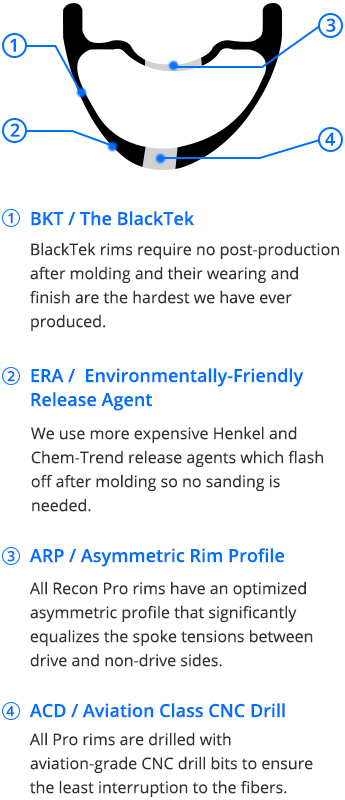

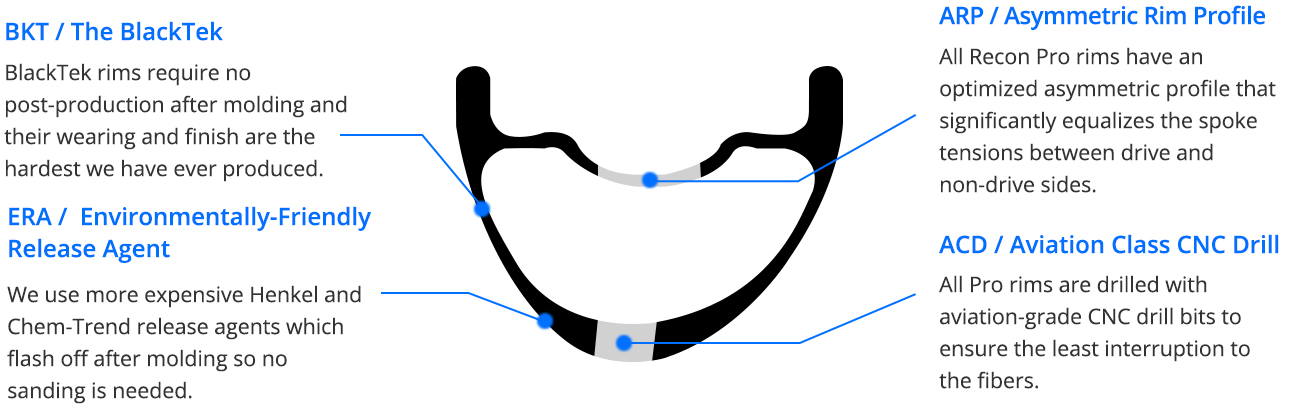

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-xc930-29er-cross-country-wheel

Chris : The wheel arrived. And Alex got his rims this weekend. 615 grams with rim tape and valve installed. Pretty light! (Disc rotor not mounted yet)

United States

Light Bicycle : Rims: XC930 UD Paintless 28/28H With Drain Holes With Access Holes Hubs: Industry Nine Hydra Silver 15/110mm 12/148mm BOOST J-bend 6-bolt 690T Sram XD Alloy Spokes: Sapim D-Light Black J-bend Nipples: Sapim aluminum black external

light-bicycle-carbon-xc-wheel-29er-xc930

Light Bicycle : Rims: XC930 29er UD Paintless With Drain Holes With Access Holes Hubs: DT SWISS 240 EXP 15/110mm 12/148mm Boost straight pull 6-bolt 28/28H EXP 36 Sram XD Spokes: Sapim CX Ray Nipples: Sapim Aluminium gold external

light-bicycle-xc930-dt-swiss-240-exp-mtb-xc-front-wheel-weight

Light Bicycle : Rims: XC930 UD Paintless 28H With Drain Holes With Access Holes Hubs: DT SWISS 240 EXP 15/110mm 12/148mm BOOST straight pull Center lock 28H EXP 36 Shimano Micro Spline Spokes: Sapim CX Ray Nipples: Sapim Aluminium Black

ultra-light-xc-mtb-wheelset-light-bicycle-xc930-29er

Light Bicycle : Rims: XC930 UD Crystal Paint (Silver) 28/28H No Drain Holes With Access Holes Taped Hubs: DT SWISS 240 EXP 15/110mm 12/148mm BOOST straight pull 6-bolt EXP 54 Sram XD Spokes: Sapim D-Light Nipples: Sapim Aluminium Red

custom-laser-engraved-strawberry-decal-wheel

Light Bicycle : Rims: XC930 UD Paintless External Hole With Drain Holes With Access Holes (tubeless taped) Hubs: DT SWISS 240 EXP 12/100mm 12/142mm Straightpull Center lock 24/28H EXP 36 Campagnolo N3W Spokes: Sapim D-Light Nipples: Sapim Aluminium Red/Green Lime

Light Bicycle : Rims: XC930 UD Paintless 28/28H With Drain Holes With Access Holes Hubs: Industry Nine Hydra Gold 15/110mm 12/148mm BOOST J-bend 6-bolt Enduro Brand 690T Shimano Micro Spline Alloy Spokes: Sapim CX Ray Black J-bend Nipples: Sapim Aluminium Gold external

Light Bicycle : Rims: XC930 Heavy-Duty (290g) UD Paintless 28/28H With Drain Holes With Access Holes Hubs: Carbon-Ti X-Hub Black 15/110mm 12/148mm Boost Straightpull 6-bolt 28/28H 56T Shimano Micro Spline Spokes: Sapim CX Ray Black straight pull Nipples: Sapim aluminium black external Weight: 1202g

View More Reviews >>

COMMENTS

Paolo 2025/01/01

Hello, my name is Paolo. We are a whellbuilder company here in Spain. We are interessting in your rims: Pro RIM XC930 Can you please quote me for 10 rims 1 bulk. Also with EMS for the forwarder. Thank you very much. Best regards Paolo

LightBicycle 2025/01/02

Hi Paolo, Thanks for your interested in our XC930 rims XC rims 29er. We just sent you quotation through email. Please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Matthijs 2024/05/30

Hi, really impressed by the recon pro xc930 rims, but std version is a bit too light for my liking (not looking for raceday-only wheels). Is it possible to order 2 rims in HD version? 28h, no decals, w/ drainage holes preferably. What would the rim weigh, and what's total cost + leadtime for delivery in the Netherlands (EU)? Thanks in advance for your reply! All the best, Matthijs

LightBicycle 2024/05/31

Hi Matthijs, What is your total weight and ride condition? Then we can check which version of XC930 mtb rims are better for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Bart 2023/07/05

hello, I'm looking for 3 sets of light XC wheels. Thinking about the XC930 with DT180 hubs? Unfortunately I need them sooner than later. What would the turn around time be? Im in Utah 84124. Thanks so much Bart

LightBicycle 2023/07/08

Hi Bart, Currently, the 29er XC wheels XC930's production line is a little overloaded. I have checked with the production line's manager, if you place the order this week, the 3 sets of wheels are supposed to be completed and shipped out before the 10th of August. If we use the MTS-Air to ship the package, you are supposed to get the packages at the end of August. Does it work for you? Thanks, Lightbicycle

Ryan 2023/09/07

Is there an "HD" version of the XC930? I am 185lbs, could use the lightweight 270g for the front, but perhaps an "HD" version for the rear? If there is an HD version, how much does it weight, and how can I order it?

LightBicycle 2023/09/08

Hi Ryan, The Max Cyclist Weight (on flat ground) is 90kg/ 198lbs for the standard XC930 rim. Yes, we could customize an HD version regarding to your weight and riding style. We have sent an email to you to discuss more details, please check it. Best Regards, Light Bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Gregory 2023/09/03

Hello, Im 88kg will XC930 rims fit for me fr light XC ride ? My bike is 11kg.

LightBicycle 2023/09/03

Hi, The Max Cyclist Weight (on flat ground) for XC930 is 90kg/ 198lbs. We would recommend an HD version for this rim regarding your weight. Thanks. Light Bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Recon Pro RIM XC930

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
