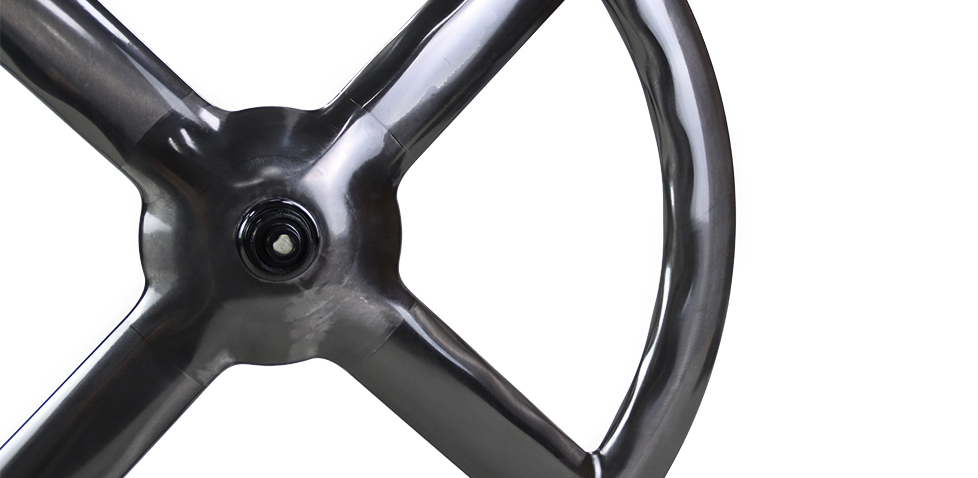

lightbicycle-quadflow-4-spoke-carbon-front-wheel-disc-brake-clincher

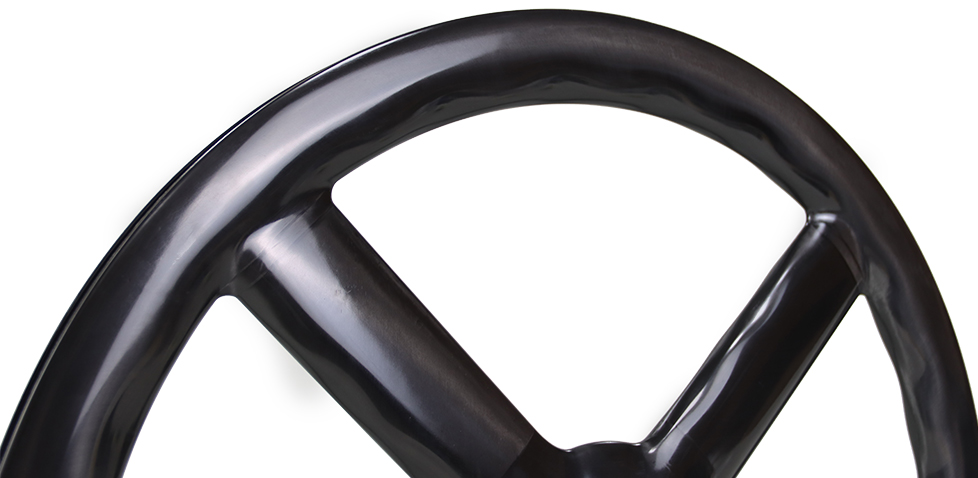

Quadflow-4-spoke-wheel-disc-brake-700c-clincher

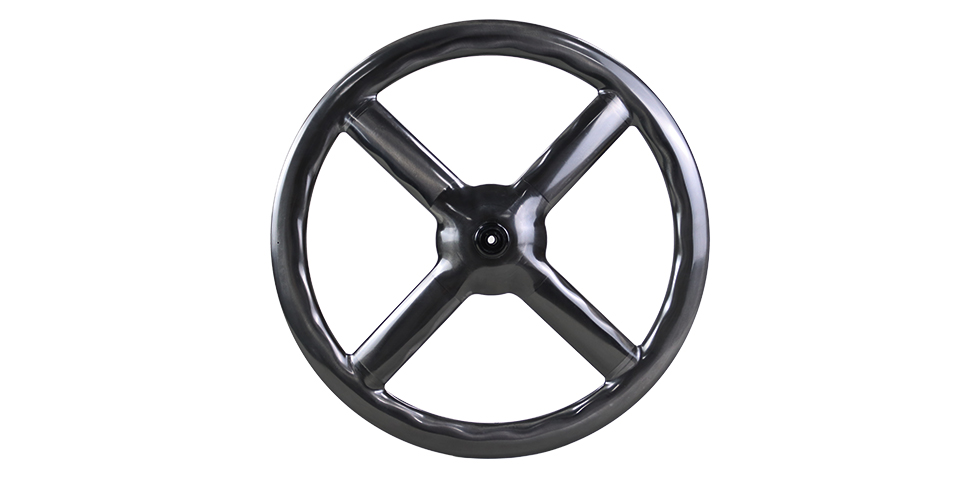

lightbicycle-carbon-4-spoke-wheel-50mm-deep-700c-disc-brake

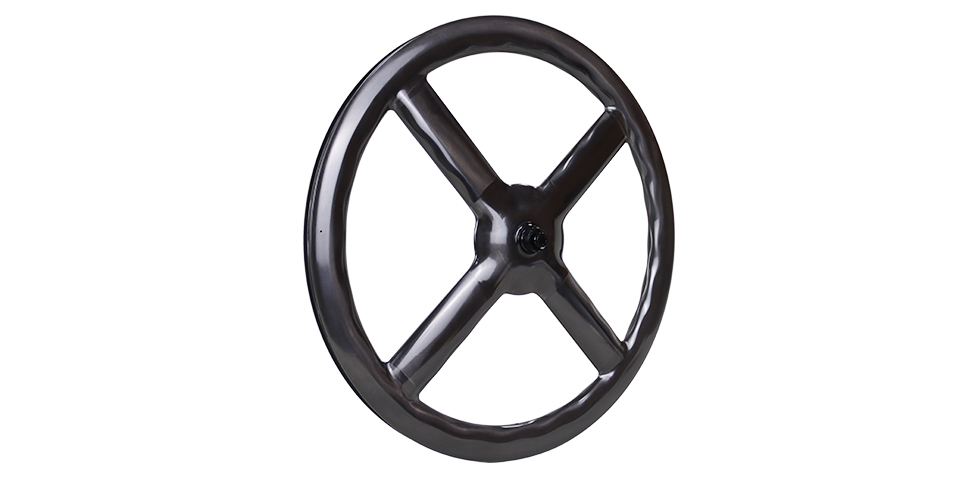

lightbicycle-700c-4-spoke-tt-tri-wheel-front-disc-brake

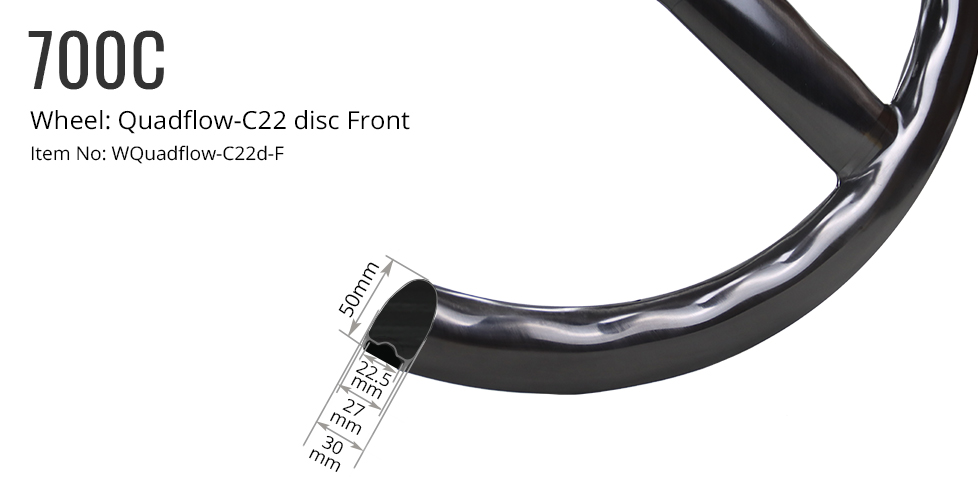

Build Your Falcon Pro WHEEL Quadflow-C22 Disc Front Wheel

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Novatec	287g	27	Low	Good	Good	Inexpensive	Three	China	NOVATEC
Bitex	258g	24	Low	Good	Good	Light	Two	China	BITEX
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
ARC	332g	48	Low	Better	Good	Economic and reliable	One	China	ARC
Chosen	260g	24	Low	Better	Good	Economic and reliable	One	China	Chosen
Light Bicycle Pace-Hub	275/285g	36/48	Low	Better	Good	Economic, reliable, light	One	China	Light Bicycle
Light Bicycle Speed-Hub Gen2	295g	36	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing (upgradable to ceramic)	Two	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

Light Bicycle Road Disc

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 100mm

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.

Center lock

Hub Color This is a required option.

Black

Brake System This is a required option.

Disc

Finish This is a required option.

The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with an inherent scratch resistant and near flawless finish, eliminating the need for coating or painting (weight saved as well). We name this kind of superior finish the paintless.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Matte/Glossy etc at no extra charge with added 100g/wheel and 1-2 weeks LONGER on manufacture. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

Paintless

Full Custom

Weave This is a required option.

Valve Hole Type This is a required option.

Presta

Decal This is a required option.

Removable sticker in Metal Silver or Golden is selectable for a powerful looking.

Custom Sticker(removable) is also available. If you select this option and LEAVE YOUR REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Blank (No decal)

Custom Sticker

Wheel Bag This is a required option.

Our all-new single wheel bag provides reliable storage for your wheel. Plus, an internal pocket is designed to store skewers and other tools. The wheel bag safely and comfortably accommodates most road and mountain bike wheels, including 700C, 26", 27.5", and 29" wheels. The wheel bag is with Light Bicycle logo by default. If you hope to get one without logo, please leave a note at checkout.

For a wheelset product, when selecting "Add Wheel Bag", you'll get two wheel bags; while for a single front/rear wheel product, you'll get one wheel bag.

None

Add Wheel Bag USD +25.5 each

Valve Stem This is a required option.

For some extreme cases, you need to install/ remove the valve stem with the help of daily-use pliers.

None

Apply Valve Stem USD +7 each

Send Photos for Shipping Confirmation This is a required option.

Yes (1-3 days longer)

No ( I do not need photos)

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 810.00g+/-25

Subtotal: USD 680+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model Quadflow-C22 disc
Introduction >>
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C
Bead Type Clincher
Series FALCON PRO
Intended Use Road / Tri / TT
Bead Type Clincher
Tubeless Capable Yes
Inner/Outer Width 22.5mm/27.5mm
Weight (hub excluded) 715+/-25g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 150kg/ 331lbs
Max Tire Pressure (with 25C) 130psi/ 8.96bar
Recommended Tire Width 28C-38C

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model Light Bicycle Road Disc
Front Axle Size 12 / 100mm

The Quadflow-C22 disc brake carbon 4-spoke wheel (front) features our tested and proven X-Flow aero profile. The waved shape reduces air drag and increases wheel stiffness laterally. This translates to a high-performance 4-spoke wheel to get you faster. You will enjoy marginal aero gains and responsive acceleration.

The 22.5mm versatile inner width suits the wheel with popular road tire sizes (28C and 30C). The rim bed is designed to fit both clinchers (with tubes) and tubeless tires.

The Quadflow 4-spoke wheel is available in two versions online: rim brake-front and disc brake-front. Get an aero upgrade to your speed weapon now!

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: Quadflow-C22 disc
Introduction >>
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C
Bead Type: Clincher
Series: FALCON PRO
Intended Use: Road / Tri / TT
Bead Type: Clincher
Tubeless Capable: Yes
Inner/Outer Width: 22.5mm/27.5mm
Weight (hub excluded): 715+/-25g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): 150kg/ 331lbs
Max Tire Pressure (with 25C): 130psi/ 8.96bar
Recommended Tire Width: 28C-38C

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: Light Bicycle Road Disc
Front Axle Size: 12 / 100mm

Overview

The Quadflow-C22 disc brake carbon 4-spoke wheel (front) features our tested and proven X-Flow aero profile. The waved shape reduces air drag and increases wheel stiffness laterally. This translates to a high-performance 4-spoke wheel to get you faster. You will enjoy marginal aero gains and responsive acceleration.

The 22.5mm versatile inner width suits the wheel with popular road tire sizes (28C and 30C). The rim bed is designed to fit both clinchers (with tubes) and tubeless tires.

The Quadflow 4-spoke wheel is available in two versions online: rim brake-front and disc brake-front. Get an aero upgrade to your speed weapon now!
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: Quadflow-C22 disc
Introduction >>

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C

Bead Type: Clincher

Series: FALCON PRO

Intended Use: Road / Tri / TT

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: 22.5mm/27.5mm

Weight (hub excluded): 715+/-25g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): 150kg/ 331lbs

Max Tire Pressure (with 25C): 130psi/ 8.96bar

Recommended Tire Width: 28C-38C

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: Light Bicycle Road Disc

Front Axle Size: 12 / 100mm
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

Be the first to review this product and help riders of your style choose the most suited.

Write a review now >>

If you've got a longer story to tell and a few pictures won't cut it, check out our storytelling feature and consider sharing your story!

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Build Your Falcon Pro WHEEL Quadflow-C22 Disc Front Wheel

Overview

Specs

Warranty

In The Box

Rims

Hubs

Overview

Specs

Rims

Hubs

Warranty

In The Box

Gallery
