Interested in RIM RR88T02 road bike/cyclocross Contact Us!

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

PREVIOUS NEXT

RIM SPECS

Use road bike/cyclocross
Size 700c
Material full carbon Toray T700
Type tubular
Weight 525g+/-15
Spoke Hole 16H to 36H
Internal hole customized
ERD 464mm
Outer width 23mm
Depth 88mm
Max weight limit 130kg
Max spoke tension 180kgf
Max tyre pressure 160psi
Finish matte/glossy
Decal customized
Weave UD/3K/12K
Warranty 15 Months
Standard En Standard

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Use: road bike/cyclocross
Size: 700c
Material: full carbon Toray T700
Type: tubular
Weight: 525g+/-15
Spoke Hole: 16H to 36H
Internal hole: customized
ERD: 464mm
Outer width: 23mm
Depth: 88mm
Max weight limit: 130kg
Max spoke tension: 180kgf
Max tyre pressure: 160psi
Finish: matte/glossy
Decal: customized
Weave: UD/3K/12K
Warranty: 15 Months
Standard: En Standard

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Overview

carbon rims with 23mm wide are become more and more popular, The wider rim/road wheels increases air volume slightly, and makes the tire sidewalls more vertical.
Specs
Rims

Use: road bike/cyclocross

Size: 700c

Material: full carbon Toray T700

Type: tubular

Weight: 525g+/-15

Spoke Hole: 16H to 36H

Internal hole: customized

ERD: 464mm

Outer width: 23mm

Depth: 88mm

Max weight limit: 130kg

Max spoke tension: 180kgf

Max tyre pressure: 160psi

Finish: matte/glossy

Decal: customized

Weave: UD/3K/12K

Warranty: 15 Months

Standard: En Standard

Read more for actual road tire width

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

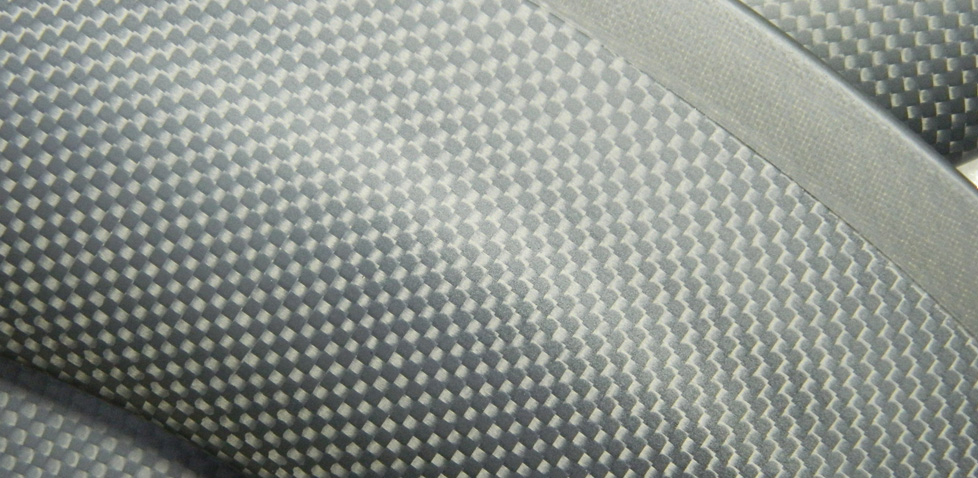

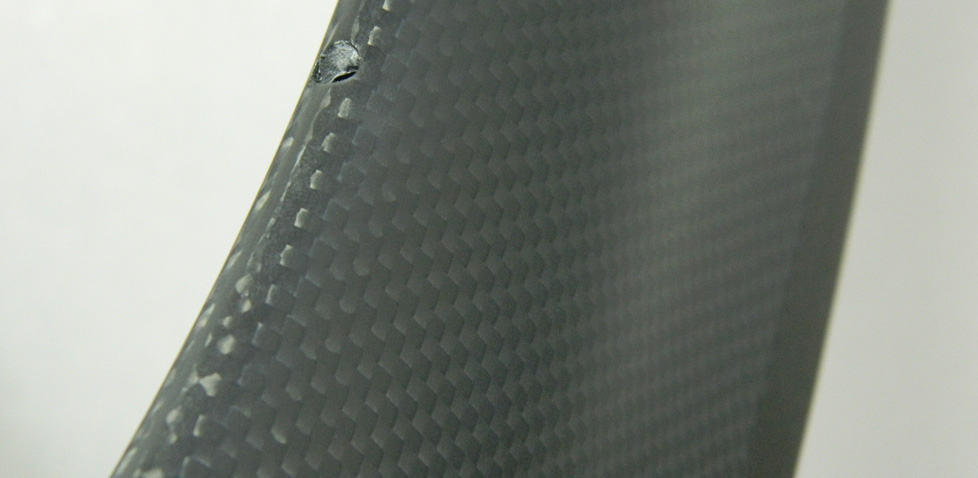

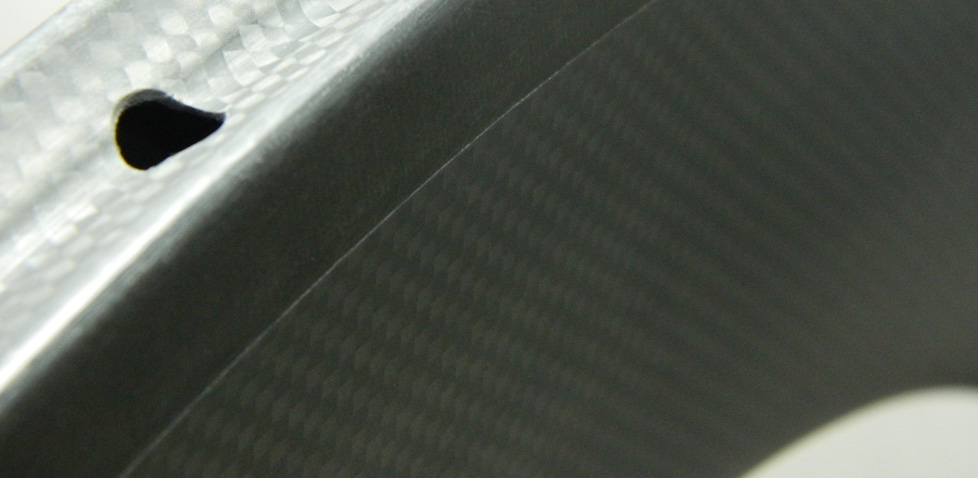

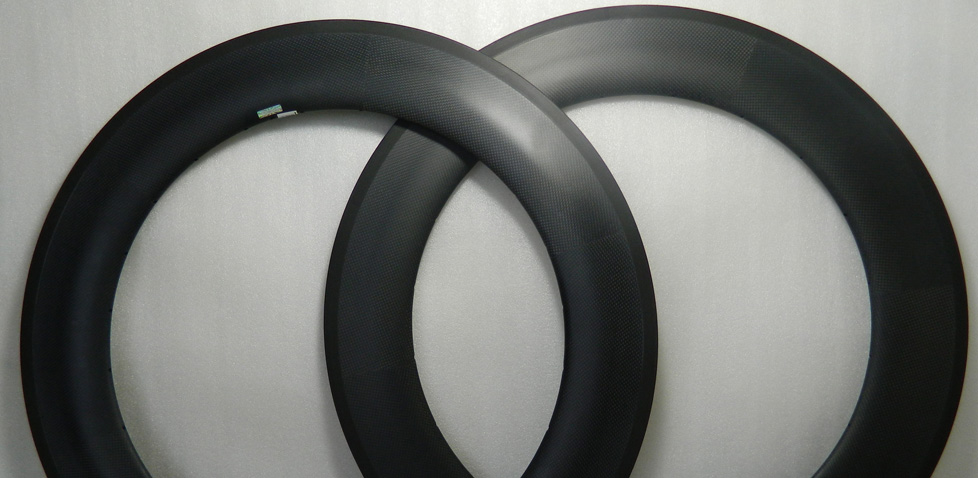

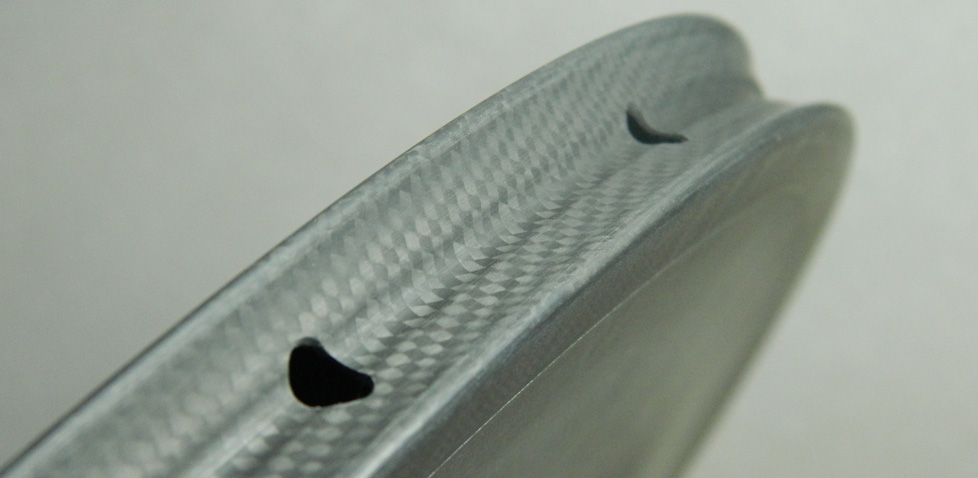

Gallery

BMC : The rims have been with me since February 2015 and still hold true form. Great to be on tour within the Ironman 70.2 circuit knowing their quality.

USA

View More Reviews >>

COMMENTS

Douglas 2018/07/27

I was wondering if you have a version of this 88mm deep tubular rim without the braking track? I need to build up a wheel set that will be used only on the Velodrome and will not need a brake track. Also, any rims deep than 88mm? Thanks for your time. Douglas

LightBicycle 2018/07/28

Hi Douglas, Hi Douglas, Do you like 88mm tubular disc wheelset? If yes, please check below link. You can pick disc hubs first, please find picture 01 for your reference. https://www.lightbicycle.com/carbon-88mm-wheels-road-bicycle-700c-tubular.html Or do you like full disc wheelset(no spokes) like the picture i sent in last emails? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Kyle 2018/06/14

Are the wider 700C 88mm carbon bicycle cyclo cross rim tubular for internal spoke nipples or extrenal spoke nipples. Thanks

LightBicycle 2018/06/15

Hi Kyle, We can do both internal and external nipples for bike rims. And no extra charge required. Which do you prefer? If you want internal nipples. I will create the invoice for you if you like. Or you can place the order online and mark your special request in the message box. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tom 2017/10/04

Hi, I'm interested in the 25mm wide 88mm deep rims. Can you send me the cross-section profile. Thanks Tom

LightBicycle 2017/10/08

Hi Tom, Sorry for the late reply. We were on National Day vacation from October 1st to 7th. We are just back to work today. Please find attached rim profile of our 25mm wide 88mm deep tubular rim and let us know if there is any questions. RRU88T02: 25mm wide/88mm deep, 550g+/-20, USD175 each Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

matthew 2016/12/08

Hello, can you do custom spoke hole count? I need a 21 hole rim in ~88m Tubular. This is a strange type, but I am replacing a current rim and have photos to show that it is 21 holes. Thanks.

LightBicycle 2016/12/09

Hello Matthew, Thanks for your inquiry. Sure. We can manufacture the 88mm tubular rim in 21H. Is 21H drilled evenly on the rim? If not, please help to show us some pictures of the spoke hole drilling pattern. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

dan 2016/09/21

Do you have any images of carbon rims for disk brake? Is the brake track still visible? -dan

Light-Bicycle 2016/09/22

Hello Dan, Thanks for your inquiry. Please find attached pictures of our road rim without brake tracks for disc bike. If you order our new 25mm wide U shape 88mm rim, the brake track is invisible. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Kellan 2016/07/29

I noticed above that you described a new U shaped 88mm tubular in reply to a comment. Is that still available, and if so could you send the ERD and how to purchase one in 24H

Light-Bicycle 2016/07/29

Hello Kellan, Thanks for your inquiry. Yes, the new 25mm wide U shape 88mm rim is available. Rim profile attached for reference. And we will upload it on our website in next month. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Adam 2016/06/22

Hello, I wanted a 16H, 88mm tubular rim for a TT bike but the only one you have is described as a "cyclo-cross" rim. Do you have a suitable rim for a front wheel of a TT bike with those specs?

Light-Bicycle 2016/06/23

Hello Adam, Thanks for your inquiry. Our 88mm rim is able for time trial bike also. Currently, we have new U shape 88mm tubular rim. It is with special material and New high TG resin, it will provide better braking surface performance than basalt braking surface. Would you like to have a try? Rim profile attached for reference. It is okay to manufacture 16H for rims. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tony 2016/01/29

Hi in interested in building a pair of 88mm rims with no brake surface for a track wheel set, wondering if you could post a pic of the gloss ud finish? Also do you offer a warranty on your rims?

Light-Bicycle 2016/02/01

Hello Tony, Thanks for your inquiry. RR88T02 (TUBULAR, disc): 540 /-15g $165/pcs Shipping with USD: $57 All pricing in USD. Please find attached picture of the rim in UD glossy. 3k/12k/UD are the 3 choices for cosmetic appearance. The rim strength & weight is virtually identical.3k matte & UD matte more popular. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Patison 2015/11/10

Hi, could you post image of cross section of this rim? Thanks

Light-Bicycle 2015/11/11

Hello Patison, Thanks for your inquiry. Please find attached cross-section drawing of 88mm depth rim. RR88T02 (23mm wide 88mm tubular rim): 540 /-15g, USD165/pcs Most of our customers choose rim weave in UD matte & 3k matte. Do you like it? Please find below link. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mark 2015/03/18

I am interested in building track racing wheel set from your 88mm rims, tubular. Am I correct that you will allow me to chose the number of holes drilled? Are there rider weight limits for 32 hole 88mm tubular drilled rims? Thank you Mark Morgan mpmorgan075@me.com

Light-Bicycle 2015/03/19

Hello Mark, Thanks for your inquiry. RR88T02 (23mm wide 88mm tubular rim): 540 /-15g, USD165/pcs Please find attached rim cross-section drawing. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? Please find below link. http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ For spoke count, we can manufacture from 16H to 36H. It depends on customers’ order. So, we can manufacture the rim in front 32H/ rear 32H if you like. Do you need the braking surface on rims? The max weight limit of 88mm tubular rim is 130kg. Thanks, Light-bicycle

James 2015/04/07

Can you get carbon rims for use on the velodrome/track without the brake surface?

Light-Bicycle 2015/04/08

ello James, Thanks for your inquiry. Yes, our rim is ok for velodrome/track using, and manufactured without braking surface. RR88T02 (23mm wide 88mm tubular rim): 540 /-15g, USD165/pcs Please find attached rim cross-section drawing. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? Please find below link. http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

David 2014/04/28

I need a rear wheel made to handle 200lb rider on 20-25mph avg rides with commuting durability. Clincher only

Light-Bicycle 2014/04/29

Hello David, Thanks for your inquiry. Please find the attached cross-section drawing of the 23mm wide 88mm clincher rim. The max weight limit is 285lb. So, it’s OK for your weight. For the rear rim, do you prefer UD, 3k or 12k? Matte or glossy? 24H? http://www.flickr.com/photos/light-bicycle/sets/72157631432948364/detail/ Which rear hub do you prefer? Novatec hub or bitex hub? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

jeff 2014/02/16

Hi can you make 95mm clincher 23mm wide ud matte internal nipples? Thanks

Light-Bicycle 2014/02/17

Hello Jeff, Thanks for your inquiry. Currently, there is no 95mm depth rim. But we have 23mm wide 88mm clincher rim. Please find the attached cross-section drawing. Is it OK for you? It’s OK to manufacture the rims with UD matte for internal nipples. Do you prefer 20H/24H? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Matt 2013/12/11

Hello - I'm interested in a set of wheels for single speed cyclocross. Can you build a set of 88mm rims to a 130mm single speed hub? I'd be interested in 28 spokes front and rear.

Light-Bicycle 2013/12/12

Hello Matt, Hello Matt, Thanks for your inquiry. Which single speed hub do you like? Is it the track hub as attached? For the 88mm rims, do you like clincher or tubular? It is ok to make wheelset with front 28/rear 28. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 13 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Interested in RIM RR88T02 road bike/cyclocross Contact Us!

Overview

Specs

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Warranty

In The Box

Gallery
